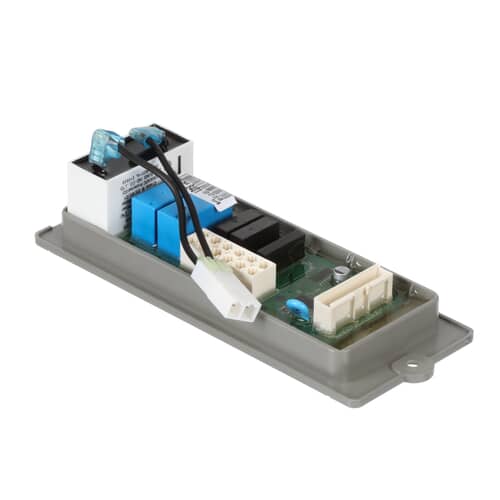

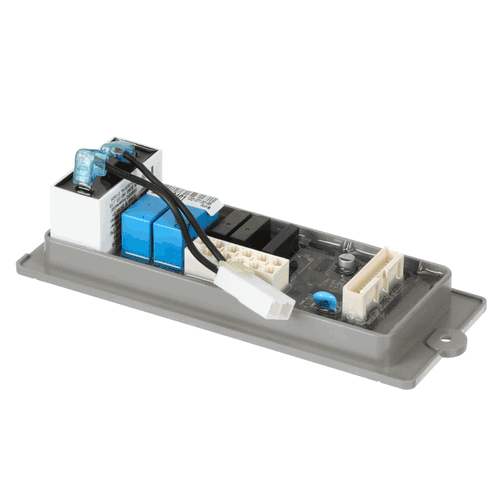

Electronics PCB Case Assembly - ABQ72940028

Protect the sensitive internal electronics of your device with the PCB Case Assembly (Part Number: ABQ72940028). This assembly acts as a protective housing for the Printed Circuit Board (PCB), shielding it from physical impact, dust, moisture, and static discharge. If the original case is cracked, melted due to heat, or has broken mounting tabs, the internal circuitry becomes vulnerable to environmental damage and electrical shorts. Replacing the case assembly is vital for maintaining the structural integrity and electrical safety of your electronics.

The ABQ72940028 is manufactured from high-impact, flame-retardant polymer materials designed to dissipate heat while providing a rigid frame for the internal components. The assembly is precision-molded to include specific cutouts for wiring harnesses and ventilation, ensuring that the PCB remains cool and correctly positioned during operation.

1. Safety First: Ensure the device is completely powered down and disconnected from any power source or battery.
2. Open the Device: Remove any outer cabinet screws or panels required to access the internal PCB area.
3. Disconnect Wiring: Carefully unplug any wiring harnesses or ribbon cables connected to the PCB within the case.
4. Remove the Old Assembly: Unscrew the mounting fasteners holding the ABQ72940028 case to the chassis. Gently lift the case and the PCB out.
5. Swap the PCB: Carefully unclip or unscrew the circuit board from the old housing and transfer it to the new assembly. Be careful not to touch the copper traces or sensitive components to avoid static damage.
6. Reinstall and Secure: Place the new case assembly into the device, secure it with the mounting screws, and reconnect all electrical leads.
7. Close and Test: Reassemble the outer panels, restore power, and verify that the device functions correctly.

• PCB Case Assembly - Part Number: ABQ72940028
• Protective Shielding: Guards the circuit board against debris, moisture, and physical shock.
• Flame-Retardant Material: Built to withstand high temperatures and prevent electrical fires.
• Precision Molded: Features exact cutouts for connectors, buttons, and cooling vents.
• Static Protection: Designed to minimize the risk of electrostatic discharge (ESD) to sensitive components.
• Rigid Structural Support: Keeps the PCB securely aligned to prevent trace cracking from vibration.
• OEM-Quality Part: Specifically engineered for an exact fit in compatible electronic models.
