Manufacturer
Whirlpool Replacement Parts

Model Number
WRS331FDDB01

Description

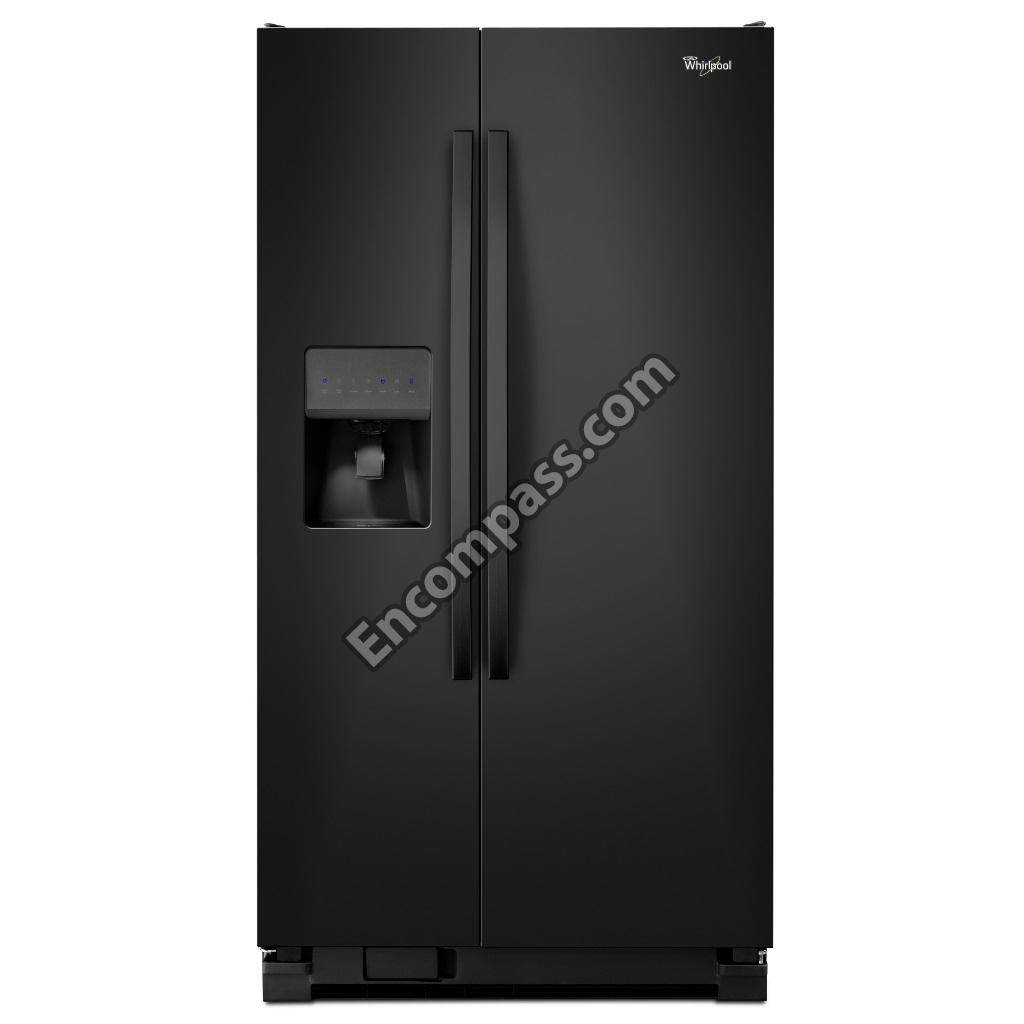

Side By Side Refrigerator Black

Interactive Exploded View

Interactive Exploded View - view assemblies diagrams and click the part you need

Parts List

CategoryPart NumberDescriptionDemand
W10838981
Whirlpool Arm, Control
Schematic Location: 25
WP1110559
Whirlpool Arm, Pivot
Schematic Location: 14
DiffuserWPW10151374
Whirlpool Assembly, Air Diffuser
Schematic Location: 7
Skill level: - Easy fix less than an hour
Y
HingeWPW10414753
Whirlpool Assembly, Bottom Hinge (Freezer)
Schematic Location: 13
HingeW11049959
Whirlpool Assembly, Bottom Hinge (Refrigerator)
Schematic Location: 25
Y
WP2182195
Whirlpool Assembly, Cam
Schematic Location: 11
Y
Condensor2324712
Whirlpool Assembly, Condenser
Schematic Location: 3
InletWPW10179146
Whirlpool Assembly, Filter Valve
Schematic Location: 38
Skill level: - Easy fix less than an hour
Y
ShieldWPW10194474
Whirlpool Assembly, Heat Shield And Drain Pan
Schematic Location: 20
WireW10417930
Whirlpool Assembly, Ice Dispenser Wiring
Schematic Location: 6
WireW10853646
Whirlpool Assembly, Led
Schematic Location: 18
Y
LightWPW10515058
Whirlpool Assembly, Led Light (Flat Lens)
Schematic Location: 4
Skill level: - Fast and very easy fix
Y
LightWPW10515057
Whirlpool Assembly, Led Light (Tapered Lens)
Schematic Location: 3
Skill level: - Fast and very easy fix
Y
W10818869
Whirlpool Assembly, Separator (Black)
Schematic Location: 5A
W10818868
Whirlpool Assembly, Separator (Midnight Grey)
Schematic Location: 5B
W10818871
Whirlpool Assembly, Separator (Sterling Silver)
Schematic Location: 5
Glass ShelfWPW10276348
Whirlpool Assembly, Shelf
Schematic Location: 17
Skill level: - Fast and very easy fix
Y
Shelf Support ComponentsWP2196485
Whirlpool Assembly, Shelf Stud
Schematic Location: 6
Glass ShelfWP2196483
Whirlpool Assembly, Shelf Stud
Schematic Location: 8
Skill level: - Fast and very easy fix
Y
W11128135
Whirlpool Assembly, Shut Off Arm
Schematic Location: 39
SolenoidWP2152713
Whirlpool Assembly, Solenoid
Schematic Location: 3
Skill level: - Easy fix less than an hour
Y
Pipe, Tube, Hose, FittingWPW10397435
Whirlpool Assembly, Water Fitting
Schematic Location: 4
Y
WPW10295082
Whirlpool Auger
Schematic Location: 21
Y
WP2179826
Whirlpool Axle, Roller
Schematic Location: 5
W10332806
Whirlpool Baffle, Air
Schematic Location: 31
Y
W10852691
Whirlpool Baffle, Floating
Schematic Location: 23
Y
Sensor, Thermistor, ThermostatWPW10225581
Whirlpool Bi-metal, Defrost
Schematic Location: 4
Skill level: - Easy fix less than an hour
Y
BinWPW10321304
Whirlpool Bin, Door
Schematic Location: 3
Skill level: - Fast and very easy fix
Y
BladeWP2169142
Whirlpool Blade, Fan
Schematic Location: 8
Skill level: - Easy fix less than an hour
Y
Pump, Motor8201630
Whirlpool Blade, Fan
Schematic Location: 2
BladeW10181990
Whirlpool Blade, Fixed
Schematic Location: 18
BladeW10278731
Whirlpool Blade, Rotary A
Schematic Location: 14
BladeW10278732
Whirlpool Blade, Rotary B
Schematic Location: 15
Y
BladeW10278733
Whirlpool Blade, Rotary C
Schematic Location: 16
W10138203
Whirlpool Block, Blade
Schematic Location: 19
Bearing1110560
Whirlpool Body, Bearing
Schematic Location: 12
ControlWP2179343
Whirlpool Body, Humidity Control
Schematic Location: 11
Y
Screw489340
Whirlpool Bolt
Schematic Location: 30
W10553058
Whirlpool Box, Control
Schematic Location: 1
Bracket, Flange, BladeWPW10219801
Whirlpool Bracket, Door Stop (Silver)
Schematic Location: 10
Skill level: - Easy fix less than an hour
Bracket, Flange, Blade2306940
Whirlpool Bracket, Door Stop (Silver)
Schematic Location: 4
Skill level: - Easy fix less than an hour
Bracket, Flange, BladeWP2181929
Whirlpool Bracket, Fan Mounting
Schematic Location: 25
Y
Bracket, Flange, BladeWPW10397979
Whirlpool Bracket, Motor
Schematic Location: 1
Bracket, Flange, Blade2311611
Whirlpool Bracket, Mounting
Schematic Location: 2
ClampWP3196256
Whirlpool Clamp, Power Cord
Schematic Location: 28
ClampW10861184
Whirlpool Clamp, Tube
Schematic Location: 37
Y
Clip489396
Whirlpool Clip
Schematic Location: 34
Clip2215823
Whirlpool Clip, Air Duct
Schematic Location: 12
Y
ClipW10683556
Whirlpool Clip, Condenser
Schematic Location: 11
ClipWP2161324
Whirlpool Clip, Defrost Heater
Schematic Location: 17
Y
ClipWP2155013
Whirlpool Clip, Grille
Schematic Location: 6
Y
Clip1119021
Whirlpool Clip, Retainer (Dispenser Rod)
Schematic Location: 27
PinW10876799
Whirlpool Clip, Roller
Schematic Location: 8
ClipWP1115374
Whirlpool Clip, Wire
Schematic Location: 5
ClipW10812039
Whirlpool Clip, Wire
Schematic Location: 5
Door,Remote Control DoorW10846218
Whirlpool Closer, Door (Freezer)
Schematic Location: 30
Y
Ice Maker, Ice Maker AssemblyWPW10300022
Whirlpool Complete Icemaker Assembly
Schematic Location: 36
Skill level: - Easy fix less than an hour
Y
Compressor - Sealed SystemW10276644
Whirlpool Compressor
Schematic Location: 28
Skill level: - Hard fix - you can do It
Y
Pipe, Tube, Hose, FittingWP2300868
Whirlpool Connector, Union
Schematic Location: 7
Y
ControlWPW10366605
Whirlpool Control, Adaptive Defrost
Schematic Location: 6
Skill level: - Easy fix less than an hour
Y
CouplingW10749708
Whirlpool Coupling, Ice Conveyor
Schematic Location: 33
Y
CouplingWPW10169511
Whirlpool Coupling, Motor
Schematic Location: 8
Y
Cover,Cap2152019
Whirlpool Cover, Air Diffuser
Schematic Location: 8
Y
Cover,CapW10797580
Whirlpool Cover, Crisper
Schematic Location: 2
Cover,CapWPW10463012
Whirlpool Cover, Evaporator
Schematic Location: 14
Cover,CapWPW10289690
Whirlpool Cover, Icemaker
Schematic Location: 37
Y
Cover,CapW10914556
Whirlpool Cover, Pan
Schematic Location: 18
Y
Cover,CapWP2188756
Whirlpool Cover, Unit
Schematic Location: 24
Y
Cover,CapW10466699
Whirlpool Cover, Unit
Schematic Location: 33
Cover,CapW10252495
Whirlpool Cover, Wiring
Schematic Location: 9
HousingW10445802
Whirlpool Cup, Led Bracket
Schematic Location: 11
CupWPW10130299
Whirlpool Cup, Shelf
Schematic Location: 7
Y
ClipWP2196062
Whirlpool Damper, Control
Schematic Location: 13
Y
Deflector & ChuteWP1119017
Whirlpool Deflecter, Ice
Schematic Location: 30
Y
Door,Remote Control DoorW10140528
Whirlpool Door Closer, Lower Cam
Schematic Location: 34
Door,Remote Control DoorWP2256101
Whirlpool Door, Compartment
Schematic Location: 2
Y
Door,Remote Control DoorLW10763103
Whirlpool Door, Freezer (Includes Item 8 And Dispenser Front Parts) (Black)
Schematic Location: 1A
Door,Remote Control DoorLW10651091
Whirlpool Door, Freezer (Includes Item 8 And Dispenser Front Parts) (Monochromatic Stainless)
Schematic Location: 1B
Door,Remote Control DoorLW10637826
Whirlpool Door, Freezer (Includes Item 8 And Dispenser Front Parts) (White)
Schematic Location: 1
Door,Remote Control DoorW10406979
Whirlpool Door, Ice
Schematic Location: 10
Y
Door,Remote Control DoorLW10750030
Whirlpool Door, Refrigerator (Includes Item 4) (Black)
Schematic Location: 1A
Door,Remote Control DoorLW10424384
Whirlpool Door, Refrigerator (Includes Item 4) (Monochromatic Stainless)
Schematic Location: 1B
Y
Door,Remote Control DoorLW10428790
Whirlpool Door, Refrigerator (Includes Item 4) (White)
Schematic Location: 1
Pipe, Tube, Hose, FittingW10771114
Whirlpool Drier
Schematic Location: 21
Dispenser4388736
Whirlpool Drum
Schematic Location: 22
Y
Duct, VentW10166220
Whirlpool Duct, Freezer Air
Schematic Location: 5
Y
EvaporatorWP2188822
Whirlpool Evaporator
Schematic Location: 16
Y
ExtensionWPW10153550
Whirlpool Extension, Drain Fitting
Schematic Location: 23
Motor,Ice Maker MotorW10687326
Whirlpool Fan Motor, Evaporator
Schematic Location: 7
Fastener489285
Whirlpool Fastener, Push-on
Schematic Location: 23
Y
W10283960
Whirlpool Filler, Wrapper (Black)
Schematic Location: 16A
W10851579
Whirlpool Filler, Wrapper (Grey)
Schematic Location: 16B
Y
WPW10283959
Whirlpool Filler, Wrapper (White)
Schematic Location: 16
FilterEDR1RXD1
Whirlpool Filter, Water
Schematic Location: 27
Skill level: - Fast and very easy fix
Y
Pipe, Tube, Hose, FittingWP2304888
Whirlpool Fitting, Drain
Schematic Location: 22
Frame2304903
Whirlpool Frame, Unit Mounting
Schematic Location: 23
BinWP2309758
Whirlpool Freezer Bin
Schematic Location: 6
Y
Cover,CapW10189274
Whirlpool Front Cover, Ice Container
Schematic Location: 9
Y
Gasket , Seal4388500
Whirlpool Gasket
Schematic Location: 6
Y
Gasket , SealWP2304241
Whirlpool Gasket
Schematic Location: 9
Y
Gasket , Seal2159073
Whirlpool Gasket, Door (Beige)
Schematic Location: 4
Y
Gasket , Seal2159072
Whirlpool Gasket, Door (Beige)
Schematic Location: 8
Y
Gasket , Seal2159081
Whirlpool Gasket, Door (Black)
Schematic Location: 4A
Y
Gasket , Seal2159080
Whirlpool Gasket, Door (Black)
Schematic Location: 8A
Y
Gasket , SealW10136732
Whirlpool Gasket, Door (Grey)
Schematic Location: 4B
Y
Gasket , SealW10136733
Whirlpool Gasket, Door (Grey)
Schematic Location: 8B
Glass ShelfW10864399
Whirlpool Glass, Cover
Schematic Location: 1
Skill level: - Fast and very easy fix
Y
WPW10393045
Whirlpool Grille (Black)
Schematic Location: 17A
Y
WPW10393046
Whirlpool Grille (Grey)
Schematic Location: 17B
WPW10393044
Whirlpool Grille (White)
Schematic Location: 17
Y
WPW10397394
Whirlpool Grille, Overflow (Black)
Schematic Location: 3A
Y
DispenserWPW10397395
Whirlpool Grille, Overflow (Grey)
Schematic Location: 3B
Skill level: - Fast and very easy fix
Y
WPW10397392
Whirlpool Grille, Overflow (White)
Schematic Location: 3
Y
WPW10169124
Whirlpool Grommet
Schematic Location: 29
Y
WP2176759
Whirlpool Grommet, Motor
Schematic Location: 10
Y
GuideW10850503
Whirlpool Guide, Solenoid
Schematic Location: 34
Y
HandleW10805245
Whirlpool Handle (Black)
Schematic Location: 5A
Skill level: - Easy fix less than an hour
HandleW10827048
Whirlpool Handle (Stainless)
Schematic Location: 5B
HandleW10848410
Whirlpool Handle (White)
Schematic Location: 5
Y
WireW10667067
Whirlpool Harness, Control Box
Schematic Location: 19
WireW10281331
Whirlpool Harness, Fan Tube Evaporator (Includes Bi-metal Defrost)
Schematic Location: 12
WireW10838084
Whirlpool Harness, Icemaker
Schematic Location: 38
Skill level: - Fast and very easy fix
Y
Heating ElementWPW10495967
Whirlpool Heater, Defrost
Schematic Location: 26
Y
HousingWPW10185018
Whirlpool Housing, Crusher
Schematic Location: 29
Skill level: - Easy fix less than an hour
Y
HousingW10862460
Whirlpool Housing, Water Filter (Black)
Schematic Location: 32A
Skill level: - Medium fix difficulty
Y
HousingW10862461
Whirlpool Housing, Water Filter (Grey)
Schematic Location: 32B
Skill level: - Easy fix less than an hour
Y
HousingW10862456
Whirlpool Housing, Water Filter (White)
Schematic Location: 32
Y
ContainerW10850492
Whirlpool Ice Container
Schematic Location: 11
Y
ContainerWPW10558424
Whirlpool Ice Container, Complete
Schematic Location: 100
Y
Insert4387491
Whirlpool Insert, Tube
Schematic Location: 36
Y
Insulation2215468
Whirlpool Insulation, Sound
Schematic Location: 12
WPW10233421
Whirlpool Inverter Box Assembly
Schematic Location: 14
Y
Knob, Dial, Button2311615
Whirlpool Knob, Control
Schematic Location: 15
Y
Knob, Dial, ButtonW10723843
Whirlpool Knob, Thermostat
Schematic Location: 10
Y
Lens2200096
Whirlpool Lens, Light
Schematic Location: 16
Louver8201651
Whirlpool Louver
Schematic Location: 2
Y
AdhesiveWP4317852
Whirlpool Miscellaneous, Cement, Alumilastic (1 1/4 Oz.)Y
WP503695
Whirlpool Miscellaneous, Cork, SealerY
GreaseWP542638
Whirlpool Miscellaneous, Grease, Silicone (1/2 Oz.)Y
Terminal833938
Whirlpool Miscellaneous, Kit, Terminal ConnectorY
Pipe, Tube, Hose, Fitting8003RP
Whirlpool Miscellaneous, Kit, Water InletY
212643
Whirlpool Miscellaneous, Sealer, Gum (4 Feet)Y
WP505587
Whirlpool Miscellaneous, Sealer, Mastic (1 Qt)Y
Tape479502
Whirlpool Miscellaneous, Tape, Vinyl (3/4 X 108")
Pump, MotorW10917708
Whirlpool Motor, Condenser Fan
Schematic Location: 18
Motor,Ice Maker MotorWPW10317991
Whirlpool Motor, Dispenser
Schematic Location: 2
Skill level: - Easy fix less than an hour
Y
PlateWPW10511972
Whirlpool Nameplate (Grey)
Schematic Location: 11A
Y
PlateWPW10511975
Whirlpool Nameplate (White)
Schematic Location: 11
BearingWP1119018
Whirlpool Nut, Bearing
Schematic Location: 24
Skill level: - Fast and very easy fix
Y
Foam2217070
Whirlpool Pad, Foam
Schematic Location: 1
4392900
Whirlpool Paint, Bulk (1 Qt. Biscuit/bisque)
799344
Whirlpool Paint, Bulk (1 Qt. White (Uncut))
4392901
Whirlpool Paint, Pressurized Spray (12Oz. Biscuit/bisque)Y
285006
Whirlpool Paint, Pressurized Spray (12Oz. Enamel, Black)Y
Auto Primer350942
Whirlpool Paint, Pressurized Spray (12Oz. White Primer)
350930
Whirlpool Paint, Pressurized Spray (12Oz. White)Y
4392899
Whirlpool Paint, Touch-up (1/2Oz. Biscuit/bisque)
Skill level: - Fast and very easy fix
Y
72032
Whirlpool Paint, Touch-up (1/2Oz. Black)Y
Washer72017
Whirlpool Paint, Touch-up (1/2Oz. White)
Skill level: - Fast and very easy fix
Y
PanWP2188656
Whirlpool Pan, Crisper
Schematic Location: 4
Skill level: - Fast and very easy fix
Y
PanWP2188664
Whirlpool Pan, Meat
Schematic Location: 5
Skill level: - Fast and very easy fix
Y
PanWP2309517
Whirlpool Pan, Snack
Schematic Location: 14
Y
Pin489229
Whirlpool Pin, Roll
Schematic Location: 20
Y
Cooking PlateWP2304249
Whirlpool Plate, Screw
Schematic Location: 7
Y
RailW10207512
Whirlpool Rail, Unit Mounting
Schematic Location: 35
WP2155590
Whirlpool Retainer, Fan Motor
Schematic Location: 2
Y
RingWP489236
Whirlpool Ring, Retainer
Schematic Location: 32
Y
W10804348
Whirlpool Rod, Connecting
Schematic Location: 22
Axle, Roller, Shaft WheelWPW10475495
Whirlpool Roller
Schematic Location: 4
Y
Axle, Roller, Shaft WheelWPW10304660
Whirlpool Roller Assembly (Left Hand)
Schematic Location: 2
Y
Axle, Roller, Shaft WheelWPW10304659
Whirlpool Roller Assembly (Right Hand)
Schematic Location: 15
Y
ScrewW10803534
Whirlpool Screw
Schematic Location: 3
Y
ScrewWP489500
Whirlpool Screw
Schematic Location: 10
Y
ScrewWP489128
Whirlpool Screw
Schematic Location: 11
Y
ScrewWP489497
Whirlpool Screw
Schematic Location: 14
Skill level: - Fast and very easy fix
Y
ScrewWP3400103
Whirlpool Screw
Schematic Location: 19
ScrewWP488488
Whirlpool Screw
Schematic Location: 20
ScrewWP489464
Whirlpool Screw
Schematic Location: 21
Y
ScrewWP488729
Whirlpool Screw
Schematic Location: 29
Skill level: - Fast and very easy fix
Y
ScrewWP489483
Whirlpool Screw
Schematic Location: 31
Skill level: - Fast and very easy fix
Y
ScrewWP488649
Whirlpool Screw
Schematic Location: 39
Screw798639
Whirlpool Screw
Schematic Location: 6
ScrewW10759522
Whirlpool Screw
Schematic Location: 10
Y
ScrewWP3-24004-109
Whirlpool Screw
Schematic Location: 7
Y
ScrewWPW10191952
Whirlpool Screw
Schematic Location: 9
Y
Screw718257
Whirlpool Screw
Schematic Location: 11
ScrewWP3400893
Whirlpool Screw
Schematic Location: 14
ScrewWP489399
Whirlpool Screw
Schematic Location: 7
Y
ScrewWP488787
Whirlpool Screw
Schematic Location: 28
Y
ScrewWPW10661886
Whirlpool Screw
Schematic Location: 12
Skill level: - Easy fix less than an hour
Y
ScrewWP3400012
Whirlpool Screw
Schematic Location: 13
Y
ScrewWP3196557
Whirlpool Screw
Schematic Location: 2
Y
ScrewWP489478
Whirlpool Screw
Schematic Location: 3
Y
ScrewWP693995
Whirlpool Screw
Schematic Location: 11
Y
Screw627068
Whirlpool Screw
Schematic Location: 5
Screw489392
Whirlpool Screw
Schematic Location: 7
ScrewWP965173
Whirlpool Screw
Schematic Location: 21
ScrewWP8533993
Whirlpool Screw
Schematic Location: 6
ScrewWP489427
Whirlpool Screw
Schematic Location: 9
Y
Screw8281232
Whirlpool Screw
Schematic Location: 15
ScrewW10476309
Whirlpool Screw
Schematic Location: 22
ScrewWPW10308751
Whirlpool Screw (Black)
Schematic Location: 18A
Y
ScrewWPW10308750
Whirlpool Screw (White)
Schematic Location: 18
Y
WP2182119
Whirlpool Scroll, Fan
Schematic Location: 1
Glass ShelfWPW10276341
Whirlpool Shelf, Snack Pan
Schematic Location: 16
Skill level: - Fast and very easy fix
Y
Glass ShelfWPW10318953
Whirlpool Shelf, Wire
Schematic Location: 2
Y
Glass ShelfWPW10318952
Whirlpool Shelf, Wire
Schematic Location: 5
Y
Glass ShelfWPW10318960
Whirlpool Shelf, Wire (Short)
Schematic Location: 10
Skill level: - Fast and very easy fix
Y
Sleeve2162499
Whirlpool Sleeve
Schematic Location: 8
SlideWP2179342
Whirlpool Slide, Humidity Control
Schematic Location: 10
Y
W10845585
Whirlpool Slide, Ice Container (Left)
Schematic Location: 13
W10845583
Whirlpool Slide, Ice Container (Right)
Schematic Location: 13A
Y
SpacerW10138206
Whirlpool Spacer - Crusher Housing
Schematic Location: 35
SpacerWPW10189658
Whirlpool Spacer, Flat
Schematic Location: 13
SpacerW10189661
Whirlpool Spacer, Step
Schematic Location: 12
Spring1119020
Whirlpool Spring, Return
Schematic Location: 26
Y
Glass Shelf4388405
Whirlpool Stud, Support
Schematic Location: 3
Y
4388358
Whirlpool Support, Fan Scroll (Left Hand)
Schematic Location: 15
SwitchWP2149705
Whirlpool Switch, Light
Schematic Location: 4
Skill level: - Easy fix less than an hour
Y
Door,Remote Control DoorWP2321285
Whirlpool Switch, Rocker Arm Combination (Freezer)
Schematic Location: 4
Skill level: - Easy fix less than an hour
W10830263
Whirlpool Tech Sheet
Schematic Location: 1A
Sensor, Thermistor, ThermostatWPW10583801
Whirlpool Thermostat Assembly
Schematic Location: 9
Y
WP2182181
Whirlpool Thimble
Schematic Location: 6
Y
Door,Remote Control DoorWP2182179
Whirlpool Thimble, Cam
Schematic Location: 8
Skill level: - Fast and very easy fix
Y
Door,Remote Control DoorWP2223752
Whirlpool Thimble, Cam
Schematic Location: 11
Skill level: - Easy fix less than an hour
Y
WireWPW10339879
Whirlpool Tie, Wire
Schematic Location: 32
HingeW11087140
Whirlpool Top Hinge (Black)
Schematic Location: 9A
Skill level: - Fast and very easy fix
HingeW10704881
Whirlpool Top Hinge (Grey)
Schematic Location: 9B
HingeW10704885
Whirlpool Top Hinge (White)
Schematic Location: 9
WP1117510
Whirlpool Torx Screw Wrench, Torx Key
Skill level: - Medium fix difficulty
Y
PanWPW10614158
Whirlpool Tray, Evaporator
Schematic Location: 19
Skill level: - Fast and very easy fix
Y
TrimW10861746
Whirlpool Trim, Crisper Pan
Schematic Location: 12
Y
TrimWP2309717
Whirlpool Trim, Door
Schematic Location: 6
Y
TrimWPW10307490
Whirlpool Trim, Door Shelf
Schematic Location: 9
Skill level: - Fast and very easy fix
Y
TrimW11035574
Whirlpool Trim, Pan
Schematic Location: 13
Y
TrimWP2179243
Whirlpool Trim, Snack Pan
Schematic Location: 15
Y
TrimWP2309941
Whirlpool Trivet
Schematic Location: 7
Skill level: - Fast and very easy fix
Y
Pipe, Tube, Hose, FittingWPW10350007
Whirlpool Tube, Filter Inlet
Schematic Location: 26
Skill level: - Easy fix less than an hour
Y
Pipe, Tube, Hose, FittingWPW10350006
Whirlpool Tube, Filter Outlet
Schematic Location: 12
Skill level: - Easy fix less than an hour
Y
Pipe, Tube, Hose, FittingW10858105
Whirlpool Tube, Process
Schematic Location: 13
Y
Pipe, Tube, Hose, Fitting2205764
Whirlpool Tube, Suction
Schematic Location: 10
Sensor, Thermistor, ThermostatWP2196003
Whirlpool Tube, Thermostat Barrier
Schematic Location: 17
Y
Pipe, Tube, Hose, FittingW10823511
Whirlpool Tube, Water
Schematic Location: 35
Y
TankWPW10276792
Whirlpool Tubing, Water Reservoir
Schematic Location: 5
Skill level: - Easy fix less than an hour
Y
BoardWPW10397957
Whirlpool Ui Assembly Control (Black)
Schematic Location: 6A
Y
ControlWPW10397958
Whirlpool Ui Assembly Control (Grey)
Schematic Location: 6B
Skill level: - Easy fix less than an hour
Y
BoardWPW10397956
Whirlpool Ui Assembly Control (White)
Schematic Location: 6
Y
WireW10821005
Whirlpool Unit, Harness
Schematic Location: 24
W10407342
Whirlpool Use And Care Guide
Schematic Location: 1
Valve, Float Assembly978028
Whirlpool Valve, Access
Schematic Location: NI
Valve, Float Assembly978029
Whirlpool Valve, Access
Schematic Location: NI
Y
Valve, Float Assembly978030
Whirlpool Valve, Access
Schematic Location: NI
Valve, Float Assembly876764
Whirlpool Valve, Access
Schematic Location: NI
Y
Valve, Float AssemblyWP978025
Whirlpool Valve, Access
Schematic Location: NI
Y
Valve, Float Assembly978026
Whirlpool Valve, Access
Schematic Location: NI
Y
Valve, Float Assembly978027
Whirlpool Valve, Access
Schematic Location: NI
Y
Washer489203
Whirlpool Washer
Schematic Location: 8
Washer489234
Whirlpool Washer, Plain Upper Cam
Schematic Location: 17

About Whirlpool

Whirlpool Corporation is the number one major appliance manufacturer in the world, and includes brands such as Whirlpool, KitchenAid, Maytag, Consul, Brastemp, Amana, Bauknecht, Jenn-Air, Indesit, among others. The Whirlpool Corporation is an American multinational manufacturer and marketer of home appliances, headquartered in Benton Charter Township, Michigan, United States, near Benton Harbor, Michigan. In many Whirlpool appliances, remarkable sense and adapt technology responds to the needs of your clothes, your meals and your foods. By adapting to each situation, intuitive sensors make key refinementsprecisely adjusting water levels for the best clean possible or measuring moisture content for better baking. So your fabrics look newer longer, meals cook more evenly, and foods stay cool and flavorful.
