Manufacturer
Whirlpool Replacement Parts

Model Number
WRS325FDAM01

Description

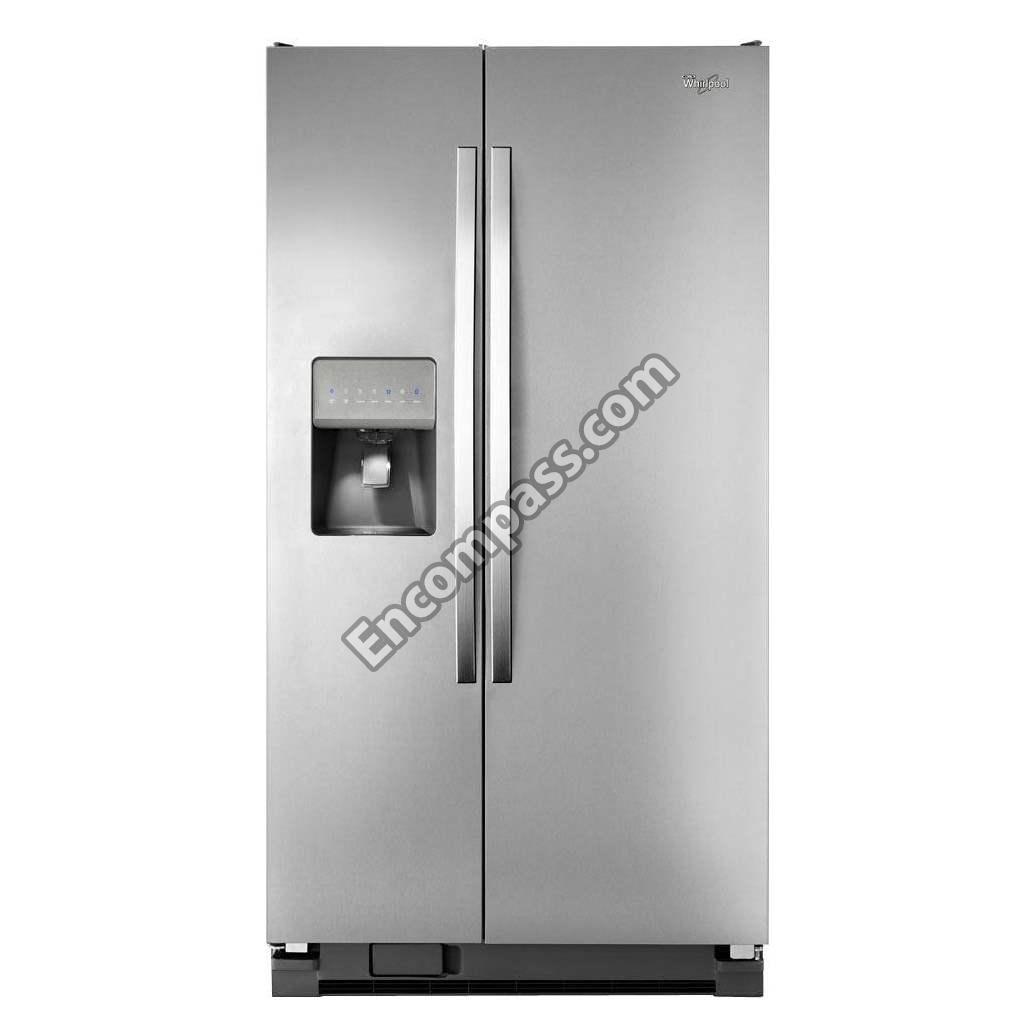

24.9 Cu. Ft. Side-by-side Refrigerator

Interactive Exploded View

Interactive Exploded View - view assemblies diagrams and click the part you need

CategoryPart NumberDescriptionDemand
ControlWPW10366605
Whirlpool Adaptive Defrost Control
Schematic Location: 6
Skill level: - Easy fix less than an hour
Y
W10332806
Whirlpool Air Baffle
Schematic Location: 31
Y
DamperWPW10151374
Whirlpool Air Diffuser Assembly
Schematic Location: 7
Skill level: - Easy fix less than an hour
Y
Duct, VentW10177781
Whirlpool Air Duct Freezer
Schematic Location: 5
W11128135
Whirlpool Arm, Shut Off
Schematic Location: 7
EvaporatorWP2188823
Whirlpool Assembly, Evaporator
Schematic Location: 16
Y
Ice Maker, Ice Maker Assembly8201515
Whirlpool Assembly, Module And Motor
Schematic Location: 18
Y
WPW10300025
Whirlpool Assembly, Mold & Heater
Schematic Location: 10
Y
Shelf Support ComponentsWP2196483
Whirlpool Assembly, Shelf Stud
Schematic Location: 8
Skill level: - Fast and very easy fix
Y
Shelf Support ComponentsWP2196485
Whirlpool Assembly, Shelf Stud
Schematic Location: 6
WPW10295082
Whirlpool Auger
Schematic Location: 21
Y
WP2179826
Whirlpool Axle, Roller
Schematic Location: 5
Y
W10852691
Whirlpool Baffle, Floating
Schematic Location: 23
Y
Bearing1110560
Whirlpool Bearing Body
Schematic Location: 12
Y
Sensor, Thermistor, ThermostatWPW10225581
Whirlpool Bi-metal, Defrost
Schematic Location: 4
Skill level: - Easy fix less than an hour
Y
Door,Remote Control DoorWPW10321304
Whirlpool Bin, Door
Schematic Location: 3
Skill level: - Fast and very easy fix
Y
DrawerWPW10144409
Whirlpool Bin, Freezer
Schematic Location: 6
Skill level: - Fast and very easy fix
Y
Pump, MotorW10156818
Whirlpool Blade, Fan
Schematic Location: 2
Skill level: - Fast and very easy fix
Y
Fan BladeWP2169142
Whirlpool Blade, Fan
Schematic Location: 8
Skill level: - Easy fix less than an hour
Y
BladeW10181990
Whirlpool Blade, Fixed
Schematic Location: 18
BladeW10278731
Whirlpool Blade, Rotary A
Schematic Location: 14
Y
BladeW10278732
Whirlpool Blade, Rotary B
Schematic Location: 15
BladeW10278733
Whirlpool Blade, Rotary C
Schematic Location: 16
W10138203
Whirlpool Block, Blade
Schematic Location: 19
ControlWP2179343
Whirlpool Body, Humidity Control
Schematic Location: 11
Y
Screw489340
Whirlpool Bolt
Schematic Location: 30
Door,Remote Control Door2306940
Whirlpool Bracket, Door Stop (Silver)
Schematic Location: 4
Skill level: - Easy fix less than an hour
Bracket, Flange, BladeWPW10219801
Whirlpool Bracket, Door Stop (Silver)
Schematic Location: 10
Skill level: - Easy fix less than an hour
Bracket, Flange, BladeWP2181929
Whirlpool Bracket, Fan Motor
Schematic Location: 25
Y
Bracket, Flange, BladeW10397980
Whirlpool Bracket, Motor
Schematic Location: 1
WP2182195
Whirlpool Cam Assembly
Schematic Location: 11
CapacitorWPW10662129
Whirlpool Capacitor
Schematic Location: 12
Skill level: - Easy fix less than an hour
Y
Deflector & ChuteWP2209774
Whirlpool Chute, Water
Schematic Location: 2
ClampWP3196256
Whirlpool Clamp, Power Cord
Schematic Location: 28
Clip489396
Whirlpool Clip
Schematic Location: 34
Clip2215823
Whirlpool Clip, Air Duct
Schematic Location: 12
ClipW10683556
Whirlpool Clip, Condenser
Schematic Location: 11
Y
ClipWP2161324
Whirlpool Clip, Defrost Heater
Schematic Location: 17
Y
ClipWP2155013
Whirlpool Clip, Grille
Schematic Location: 6
Y
ClipWP628379
Whirlpool Clip, Thermal Fuse
Schematic Location: 3
ClipW10812039
Whirlpool Clip, Wire
Schematic Location: 5
ClipWP1115374
Whirlpool Clip, Wire
Schematic Location: 5
PinWP2174706
Whirlpool Clip-roller
Schematic Location: 8
Ice Maker, Ice Maker AssemblyWPW10300022
Whirlpool Complete Icemaker Assembly
Schematic Location: 100
Skill level: - Easy fix less than an hour
Y
Compressor - Sealed SystemWPW10463858
Whirlpool Compressor
Schematic Location: 28
Y
Condensor2324712
Whirlpool Condenser Assembly
Schematic Location: 3
Y
2311631
Whirlpool Connecting Rod
Schematic Location: 22
Pipe, Tube, Hose, FittingWP2300868
Whirlpool Connector, Uon
Schematic Location: 7
Y
W10838981
Whirlpool Control Arm
Schematic Location: 25
Y
W10553058
Whirlpool Control Box
Schematic Location: 1
WireW10417924
Whirlpool Control Box Harness
Schematic Location: 19
CouplingWP983668
Whirlpool Coupling, Ice Conveyor
Schematic Location: 33
CouplingWPW10169511
Whirlpool Coupling, Motor
Schematic Location: 8
Y
Cover,Cap2152019
Whirlpool Cover, Air Diffuser
Schematic Location: 8
Cover,CapW10508993
Whirlpool Cover, Crisper
Schematic Location: 2
Skill level: - Fast and very easy fix
Y
Cover,CapWPW10463013
Whirlpool Cover, Evaporator
Schematic Location: 14
Cover,CapWPW10289690
Whirlpool Cover, Icemaker
Schematic Location: 8
Y
WP2188755
Whirlpool Cover, Ut
Schematic Location: 24
Y
Cover,CapW10252495
Whirlpool Cover, Wiring
Schematic Location: 9
DrawerWP2188656
Whirlpool Crisper Pan
Schematic Location: 4
Skill level: - Fast and very easy fix
Y
CupWPW10130299
Whirlpool Cup, Shelf
Schematic Location: 7
Y
Ice Maker, Ice Maker AssemblyW10435665
Whirlpool Cup, Water Fill
Schematic Location: 11
Skill level: - Easy fix less than an hour
Y
2304845
Whirlpool Customer Quick Tips Energy Guide
Schematic Location: 1
ClipWP2196062
Whirlpool Damper Control
Schematic Location: 13
Y
Deflector & ChuteWP1119017
Whirlpool Deflecter, Ice
Schematic Location: 30
HingeWP2223751
Whirlpool Door Closer, Freezer
Schematic Location: 30
Skill level: - Easy fix less than an hour
Y
Gasket , Seal2159074
Whirlpool Door Gasket, Magnetic (Beige)
Schematic Location: 8
Skill level: - Fast and very easy fix
Y
Gasket , Seal2159075
Whirlpool Door Gasket, Magnetic (Beige)
Schematic Location: 4
Skill level: - Fast and very easy fix
Y
Gasket , Seal2159082
Whirlpool Door Gasket, Magnetic (Black)
Schematic Location: 8
Skill level: - Fast and very easy fix
Y
Gasket , Seal2159081
Whirlpool Door Gasket, Magnetic (Black)
Schematic Location: 4
Y
Gasket , SealW10136735
Whirlpool Door Gasket, Magnetic (Grey)
Schematic Location: 8
Skill level: - Fast and very easy fix
Y
Gasket , SealWPW10136734
Whirlpool Door Gasket, Magnetic (Grey)
Schematic Location: 4
Skill level: - Fast and very easy fix
Y
WP2256101
Whirlpool Door, Compartment
Schematic Location: 2
Y
Compressor - Sealed SystemWPW10143759
Whirlpool Drier
Schematic Location: 21
Skill level: - Hard fix - you can do It
Y
Dispenser4388736
Whirlpool Drum
Schematic Location: 22
Y
W10318914
Whirlpool Ejector, Arm
Schematic Location: 12
GuideW10393029
Whirlpool Energy Label
Schematic Location: 1
ExtensionWPW10153550
Whirlpool Extension, Drain Fitting
Schematic Location: 23
Evaporator4389144
Whirlpool Fan Motor
Schematic Location: 7
Skill level: - Easy fix less than an hour
Y
Fastener489285
Whirlpool Fastener, Push-on
Schematic Location: 23
Y
W10283960
Whirlpool Filler, Wrapper (Black)
Schematic Location: 16
W10283961
Whirlpool Filler, Wrapper (Grey)
Schematic Location: 16
WPW10283959
Whirlpool Filler, Wrapper (White)
Schematic Location: 16
InletWPW10179146
Whirlpool Filter Valve Assembly
Schematic Location: 6
Skill level: - Easy fix less than an hour
Y
FilterEDR1RXD1
Whirlpool Filter, Water
Schematic Location: 27
Skill level: - Fast and very easy fix
Y
Pipe, Tube, Hose, FittingWP2304888
Whirlpool Fitting, Drain
Schematic Location: 22
Y
FrameW10196321
Whirlpool Frame, Ut Mounting
Schematic Location: 23
Door,Remote Control DoorLW10763099
Whirlpool Freezer Door (Includes Item 8 And Dispenser Front Parts)
Schematic Location: 1
Door,Remote Control DoorLW10436758
Whirlpool Freezer Door (Includes Item 8 And Dispenser Front Parts)
Schematic Location: 1
Door,Remote Control DoorLW10436760
Whirlpool Freezer Door (Includes Item 8 And Dispenser Front Parts)
Schematic Location: 1
Y
ContainerW10189191
Whirlpool Front Cover, Ice Container
Schematic Location: 9
Skill level: - Easy fix less than an hour
Y
Axle, Roller, Shaft WheelWPW10304660
Whirlpool Front Roller Left
Schematic Location: 2
Y
Axle, Roller, Shaft WheelWPW10304659
Whirlpool Front Roller, Right
Schematic Location: 15
Y
Gasket , SealWP2155789
Whirlpool Gasket
Schematic Location: 13
Gasket , SealWP2304241
Whirlpool Gasket
Schematic Location: 9
Gasket , Seal4388500
Whirlpool Gasket, Air Duct
Schematic Location: 6
Glass ShelfW10864399
Whirlpool Glass, Cover
Schematic Location: 1
Skill level: - Fast and very easy fix
Y
Grille KickplateWPW10348651
Whirlpool Grille (Black)
Schematic Location: 17
Skill level: - Fast and very easy fix
Y
Grille KickplateWPW10350049
Whirlpool Grille (Grey)
Schematic Location: 17
Skill level: - Fast and very easy fix
Y
Grille KickplateWPW10348650
Whirlpool Grille (White)
Schematic Location: 17
Skill level: - Fast and very easy fix
Y
WPW10397394
Whirlpool Grille, Overflow (Black)
Schematic Location: 3
Y
DispenserWPW10397395
Whirlpool Grille, Overflow (Grey)
Schematic Location: 3
Skill level: - Fast and very easy fix
Y
WPW10397392
Whirlpool Grille, Overflow (White)
Schematic Location: 3
Y
WPW10169124
Whirlpool Grommet
Schematic Location: 29
WP2176759
Whirlpool Grommet, Motor
Schematic Location: 10
Y
HandleWPW10398788
Whirlpool Handle (Black)
Schematic Location: 5
HandleW10875097
Whirlpool Handle (Stainless)
Schematic Location: 5
HandleW10848410
Whirlpool Handle (White)
Schematic Location: 5
WireW11084324
Whirlpool Harness, Evaporator Fan
Schematic Location: 12
Y
WireW10838084
Whirlpool Harness, Icemaker
Schematic Location: 21
Skill level: - Fast and very easy fix
Y
ShieldW10194475
Whirlpool Heat Shield And Drain Pan
Schematic Location: 20
Y
WP2323198
Whirlpool Heater, Defrost
Schematic Location: 26
Y
HingeWPW10414753
Whirlpool Hinge Bottom Fc
Schematic Location: 13
HingeW11049959
Whirlpool Hinge Bottom Rc
Schematic Location: 25
Y
HingeW11087140
Whirlpool Hinge Top Fc (Black)
Schematic Location: 9
Skill level: - Fast and very easy fix
HingeWPW10400479
Whirlpool Hinge Top Fc (Grey)
Schematic Location: 9
HingeW11175565
Whirlpool Hinge Top Fc (White)
Schematic Location: 9
Y
Ice Maker ComponentsWPW10185018
Whirlpool Housing, Crusher
Schematic Location: 29
Skill level: - Easy fix less than an hour
Y
FilterW10862460
Whirlpool Housing, Water Filter (Black)
Schematic Location: 32
Skill level: - Medium fix difficulty
Y
FilterW10862461
Whirlpool Housing, Water Filter (Grey)
Schematic Location: 32
Skill level: - Easy fix less than an hour
Y
FilterW10862456
Whirlpool Housing, Water Filter (White)
Schematic Location: 32
Y
ContainerWPW10670845
Whirlpool Ice Container
Schematic Location: 11
Y
ContainerWPW10558423
Whirlpool Ice Container, Complete
Schematic Location: 100
Skill level: - Fast and very easy fix
Y
Door,Remote Control DoorW10406980
Whirlpool Ice Door
Schematic Location: 10
Y
Knob, Dial, Button2311615
Whirlpool Knob, Control
Schematic Location: 15
Knob, Dial, ButtonW10723843
Whirlpool Knob, Thermostat
Schematic Location: 10
Y
WireW10853646
Whirlpool Led Light Assembly
Schematic Location: 18
LightWPW10515058
Whirlpool Led Light Assembly Flat Lens
Schematic Location: 4
Skill level: - Fast and very easy fix
Y
LightWPW10515057
Whirlpool Led Light Assembly Tapered Lens
Schematic Location: 3
Skill level: - Fast and very easy fix
Y
Cover,Cap2200096
Whirlpool Lens, Light
Schematic Location: 16
Y
Louver8201651
Whirlpool Louver
Schematic Location: 2
Y
Terminal833938
Whirlpool Miscellaneous (Kit, Terminal Connector)Y
AdhesiveWP4317852
Whirlpool Miscellaneous, Cement, Alumilastic (11/4 Oz.)Y
WP503695
Whirlpool Miscellaneous, Cork, SealerY
GreaseWP542638
Whirlpool Miscellaneous, Grease, Silicone (1/2Oz.)Y
212643
Whirlpool Miscellaneous, Sealer, Gum (4 Feet)Y
WP505587
Whirlpool Miscellaneous, Sealer, Mastic (1 Qt)Y
Tape479502
Whirlpool Miscellaneous, Tape, Vinyl (3/4 X 108")
Motor,Ice Maker MotorWP2188874
Whirlpool Motor, Condenser
Schematic Location: 18
Skill level: - Easy fix less than an hour
Y
Pump, MotorWPW10317991
Whirlpool Motor, Dispenser
Schematic Location: 2
Skill level: - Easy fix less than an hour
Y
Bracket, Flange, Blade2311611
Whirlpool Mounting Bracket
Schematic Location: 2
PlateWPW10511972
Whirlpool Nameplate (Grey)
Schematic Location: 11
PlateWPW10511975
Whirlpool Nameplate (White)
Schematic Location: 11
BearingWP1119018
Whirlpool Nut, Bearing
Schematic Location: 24
Skill level: - Fast and very easy fix
Y
W10407342
Whirlpool Owners Manaul
Schematic Location: 1
4392900
Whirlpool Paint, Bulk (1 Qt. Biscuit/bisque)
799344
Whirlpool Paint, Bulk (1 Qt. White)Y
285006
Whirlpool Paint, Pressurized Spray (12 Oz. Enamel, Black)Y
Auto Primer350942
Whirlpool Paint, Pressurized Spray (12 Oz. White Primer)Y
350930
Whirlpool Paint, Pressurized Spray (12 Oz. White)Y
4392901
Whirlpool Paint, Pressurized Spray (12Oz. Biscuit/bisque)
4392899
Whirlpool Paint, Touch-up (1/2Oz. Biscuit/bisque)
Skill level: - Fast and very easy fix
Y
72032
Whirlpool Paint, Touch-up (1/2Oz. Black)Y
Washer72017
Whirlpool Paint, Touch-up (1/2Oz. White)
Skill level: - Fast and very easy fix
Y
DrawerWP2188664
Whirlpool Pan, Meat
Schematic Location: 5
Skill level: - Fast and very easy fix
Y
DrawerWP2309517
Whirlpool Pan, Snack
Schematic Location: 14
Y
Pin489229
Whirlpool Pin, Roll
Schematic Location: 20
Y
WP1110559
Whirlpool Pivot Arm
Schematic Location: 14
HingeWP2304249
Whirlpool Plate, Screw
Schematic Location: 7
Door,Remote Control DoorLW10407712
Whirlpool Refrigerator Door (Includes Item 4) (Black)
Schematic Location: 1
Door,Remote Control DoorLW10430228
Whirlpool Refrigerator Door (Includes Item 4) (Stainless)
Schematic Location: 1
Door,Remote Control DoorLW10407713
Whirlpool Refrigerator Door (Includes Item 4) (White)
Schematic Location: 1
TankWPW10276792
Whirlpool Reservoir
Schematic Location: 5
Skill level: - Easy fix less than an hour
Y
Clip1119021
Whirlpool Retainer Clip, Rod Dispenser
Schematic Location: 27
WP2155590
Whirlpool Retainer, Fan Motor
Schematic Location: 2
Y
ClipWP2315522
Whirlpool Retainer, Thermostat
Schematic Location: 15
Y
RingWP489236
Whirlpool Ring, Retainer
Schematic Location: 32
Axle, Roller, Shaft WheelWPW10475495
Whirlpool Roller
Schematic Location: 4
Y
ScrewW10001240
Whirlpool Screw
Schematic Location: 17
ScrewWP488649
Whirlpool Screw
Schematic Location: 9
ScrewW10001280
Whirlpool Screw
Schematic Location: 5
ScrewWP488163
Whirlpool Screw
Schematic Location: 1
ScrewW10476309
Whirlpool Screw
Schematic Location: 22
Screw8281232
Whirlpool Screw
Schematic Location: 15
ScrewWP8533993
Whirlpool Screw
Schematic Location: 6
ScrewWP965173
Whirlpool Screw
Schematic Location: 21
Screw489392
Whirlpool Screw
Schematic Location: 7
Screw627068
Whirlpool Screw
Schematic Location: 5
Screw4389654
Whirlpool Screw
Schematic Location: 11
ScrewWP489478
Whirlpool Screw
Schematic Location: 3
Y
ScrewWP3196557
Whirlpool Screw
Schematic Location: 2
Y
Door,Remote Control DoorWP3400012
Whirlpool Screw
Schematic Location: 13
HandleWPW10661886
Whirlpool Screw
Schematic Location: 12
Skill level: - Easy fix less than an hour
Y
ScrewWP488787
Whirlpool Screw
Schematic Location: 28
Y
ScrewWP489399
Whirlpool Screw
Schematic Location: 7
Y
Screw718257
Whirlpool Screw
Schematic Location: 11
Y
ScrewWPW10191952
Whirlpool Screw
Schematic Location: 9
ScrewWP3-24004-109
Whirlpool Screw
Schematic Location: 7
Y
ScrewW10759522
Whirlpool Screw
Schematic Location: 10
Screw798639
Whirlpool Screw
Schematic Location: 6
ScrewWP489483
Whirlpool Screw
Schematic Location: 31
Skill level: - Fast and very easy fix
Y
ScrewWP488729
Whirlpool Screw
Schematic Location: 29
Skill level: - Fast and very easy fix
Y
ScrewWP489464
Whirlpool Screw
Schematic Location: 21
ScrewWP488488
Whirlpool Screw
Schematic Location: 20
ScrewWP3400103
Whirlpool Screw
Schematic Location: 19
ScrewWP489497
Whirlpool Screw
Schematic Location: 14
Skill level: - Fast and very easy fix
Y
ScrewWP489128
Whirlpool Screw
Schematic Location: 11
Y
ScrewWP489500
Whirlpool Screw
Schematic Location: 10
Y
ScrewWP489427
Whirlpool Screw
Schematic Location: 3
ScrewWPW10308750
Whirlpool Screw (White)
Schematic Location: 18
Y
ScrewWPW10308751
Whirlpool Screw, Black
Schematic Location: 18
Y
WP2182120
Whirlpool Scroll, Fan
Schematic Location: 1
Y
Door,Remote Control DoorWPW10616141
Whirlpool Separator Assembly (Black)
Schematic Location: 5
Y
Door,Remote Control DoorWPW10616145
Whirlpool Separator Assembly (Grey)
Schematic Location: 5
Door,Remote Control DoorWPW10616140
Whirlpool Separator Assembly (White)
Schematic Location: 5
Glass ShelfWPW10276348
Whirlpool Shelf Assembly, Spillguard
Schematic Location: 17
Skill level: - Fast and very easy fix
Y
Glass ShelfWPW10276341
Whirlpool Shelf, Snack Pan
Schematic Location: 16
Skill level: - Fast and very easy fix
Y
WireWPW10318948
Whirlpool Shelf, Wire
Schematic Location: 10
Y
WireWPW10318947
Whirlpool Shelf, Wire
Schematic Location: 5
Skill level: - Fast and very easy fix
Y
WireWPW10318961
Whirlpool Shelf, Wire
Schematic Location: 2
Skill level: - Fast and very easy fix
Y
Sleeve2162499
Whirlpool Sleeve, Pressure Switch Hose
Schematic Location: 8
SlideWP2179342
Whirlpool Slide, Humidity Control
Schematic Location: 10
W10845585
Whirlpool Slide, Ice Container (Left)
Schematic Location: 13
1119293
Whirlpool Slide, Ice Container (Right)
Schematic Location: 13
WP2152713
Whirlpool Solenoid Assembly
Schematic Location: 3
Skill level: - Easy fix less than an hour
Y
SpacerWPW10189658
Whirlpool Spacer, Flat
Schematic Location: 13
SpacerW10189661
Whirlpool Spacer, Step
Schematic Location: 12
Spring1119020
Whirlpool Spring, Return
Schematic Location: 26
WPW10194431
Whirlpool Start Device, Combination (Start Relay And Overload)
Schematic Location: 14
Y
W10204187
Whirlpool Strap, Bale
Schematic Location: 1
Y
WPW10122563
Whirlpool Stripper, Ice
Schematic Location: 13
Y
HousingWP2195914
Whirlpool Support
Schematic Location: 14
Y
Shelf Support Components4388405
Whirlpool Support Stud
Schematic Location: 3
4388358
Whirlpool Support, Fan Scroll (Right Hand)
Schematic Location: 15
SwitchWP2149705
Whirlpool Switch, Light
Schematic Location: 4
Skill level: - Easy fix less than an hour
Y
Door,Remote Control DoorWP2321285
Whirlpool Switch, Rocker Arm Combination (Freezer)
Schematic Location: 4
Skill level: - Easy fix less than an hour
WP2321258
Whirlpool Thermostat (Also Order No.542369)
Schematic Location: 16
Y
Sensor, Thermistor, ThermostatWPW10583800
Whirlpool Thermostat Assembly
Schematic Location: 9
Y
WP2182181
Whirlpool Thimble
Schematic Location: 6
Y
HingeWP2223752
Whirlpool Thimble, Cam
Schematic Location: 11
Skill level: - Easy fix less than an hour
Y
Door,Remote Control DoorWP2182179
Whirlpool Thimble, Cam
Schematic Location: 8
Skill level: - Fast and very easy fix
Y
WireWPW10339879
Whirlpool Tie, Wire
Schematic Location: 32
WP1117510
Whirlpool Torx Screw Wrench Torx Key
Skill level: - Medium fix difficulty
Y
PanWPW10614158
Whirlpool Tray, Evaporator
Schematic Location: 19
Skill level: - Fast and very easy fix
Y
TrimWPW10393041
Whirlpool Trim, Crisper Pan
Schematic Location: 12
Door,Remote Control DoorWPW10307490
Whirlpool Trim, Door Shelf
Schematic Location: 9
Skill level: - Fast and very easy fix
Y
DrawerWP2179234
Whirlpool Trim, Pan
Schematic Location: 13
Y
TrimWP2179243
Whirlpool Trim, Snack Pan
Schematic Location: 15
Y
Door,Remote Control DoorWP2309718
Whirlpool Trivet
Schematic Location: 6
Y
Door,Remote Control DoorWP2309941
Whirlpool Trivet
Schematic Location: 7
Skill level: - Fast and very easy fix
Y
Sensor, Thermistor, ThermostatWP2196003
Whirlpool Tube Barrier, Thermostat
Schematic Location: 17
DispenserWPW10350007
Whirlpool Tube, Filter Inlet
Schematic Location: 26
Skill level: - Easy fix less than an hour
Y
Pipe, Tube, Hose, FittingWPW10350006
Whirlpool Tube, Filter Outlet
Schematic Location: 12
Skill level: - Easy fix less than an hour
Y
Pipe, Tube, Hose, FittingW10858105
Whirlpool Tube, Process
Schematic Location: 13
Pipe, Tube, Hose, FittingWP2205765
Whirlpool Tube, Suction
Schematic Location: 10
Y
Pipe, Tube, Hose, FittingWPW10664271
Whirlpool Tube-water
Schematic Location: 4
Y
BoardWPW10397957
Whirlpool Ui Assembly Control (Black)
Schematic Location: 6
Y
ControlWPW10397958
Whirlpool Ui Assembly Control (Grey)
Schematic Location: 6
Skill level: - Easy fix less than an hour
Y
BoardWPW10397956
Whirlpool Ui Assembly Control (White)
Schematic Location: 6
Y
Cover,CapW10466698
Whirlpool Ut Cover, Bottom
Schematic Location: 33
Y
RailW10196313
Whirlpool Ut Mounting Rail
Schematic Location: 35
WireW10805739
Whirlpool Ut, Harness
Schematic Location: 24
Y
Valve, Float Assembly876764
Whirlpool Valve, AccessY
Valve, Float Assembly978030
Whirlpool Valve, Access
Valve, Float Assembly978029
Whirlpool Valve, Access
Valve, Float Assembly978027
Whirlpool Valve, AccessY
Valve, Float Assembly978026
Whirlpool Valve, Access
Valve, Float AssemblyWP978025
Whirlpool Valve, Access (1/4")Y
Washer489234
Whirlpool Washer, Plain Upper Cam
Schematic Location: 17
Washer489203
Whirlpool Washer, Spring
Schematic Location: 8
Pipe, Tube, Hose, FittingWPW10397435
Whirlpool Water Fitting Assembly
Schematic Location: 4
Y
WireW10417930
Whirlpool Wiring Assembly, Ice Dispenser
Schematic Location: 6
Whirlpool Corporation is the number one major appliance manufacturer in the world, and includes brands such as Whirlpool, KitchenAid, Maytag, Consul, Brastemp, Amana, Bauknecht, Jenn-Air, Indesit, among others. The Whirlpool Corporation is an American multinational manufacturer and marketer of home appliances, headquartered in Benton Charter Township, Michigan, United States, near Benton Harbor, Michigan. In many Whirlpool appliances, remarkable sense and adapt technology responds to the needs of your clothes, your meals and your foods. By adapting to each situation, intuitive sensors make key refinementsprecisely adjusting water levels for the best clean possible or measuring moisture content for better baking. So your fabrics look newer longer, meals cook more evenly, and foods stay cool and flavorful.
