W8RXNGMWB00 Whirlpool Replacement Parts

Manufacturer

Model Number
W8RXNGMWB00

Description

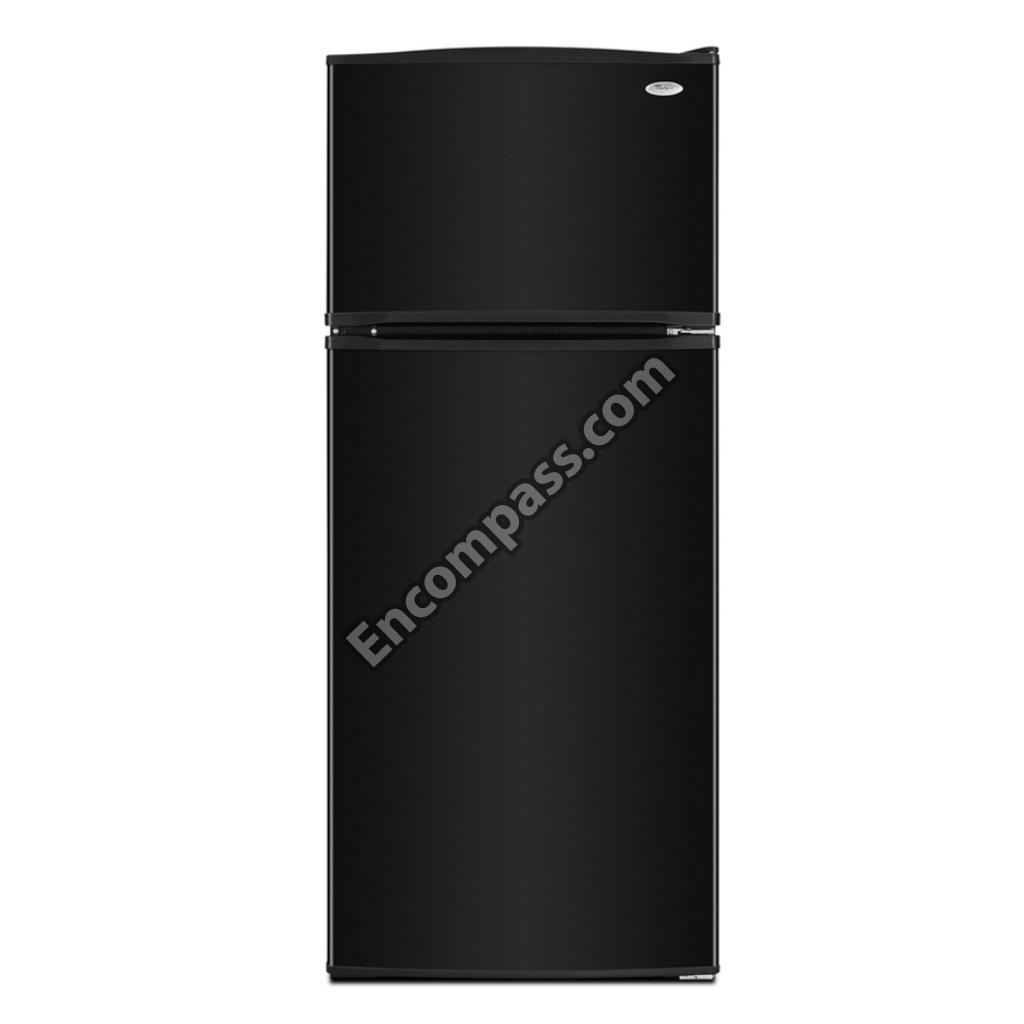

Top-mount Refrigerator Black

Interactive Exploded View

Parts Prediction

Tell us what's wrong with your Whirlpool Top-mount Refrigerator Black, and we can predict what parts you need to fix it.

Clicking sound

Door won't open or close

Freezer not defrosting

Freezer section too warm

Freezer too cold

Ice maker dispenses too little ice

Ice maker dispenses too much ice

Ice maker not making ice

Ice maker won't dispense ice

Leaking

Noisy

Not dispensing water

Refrigerator and Freezer are too warm

Refrigerator runs too long

Refrigerator too cold

Refrigerator too warm

Will not start

Parts List

Category	Part Number	Description	Demand	Availability
Timer	4388931	Whirlpool Adaptive Defrost Control Schematic Location: 4	Y	In Stock In stock 135.95
	W10358308	Whirlpool Air Baffle Schematic Location: 10		Ships in 30 days 85.95
Diffuser	WPW10355265	Whirlpool Air Diffuser Schematic Location: 26		In Stock In stock 94.95
Duct, Vent	2252831	Whirlpool Air Duct Assembly Schematic Location: 34		In Stock In stock 45.95
	9790408	Whirlpool Air Tower Schematic Location: 23	Y	No
	WP2264756	Whirlpool Axle, Rivet Schematic Location: 18	Y	Ships in 30 days 9.95
Control	WP2212446	Whirlpool Body, Humidity Control Schematic Location: 9	Y	In Stock In stock 41.95
Bracket, Flange, Blade	628320	Whirlpool Bracket Schematic Location: 25		No
Capacitor	WPW10662129	Whirlpool Capacitor (Production) Schematic Location: 26 Skill level: - Easy fix less than an hour	Y	In Stock In stock 41.95
Adhesive	WP4317852	Whirlpool Cement, Alumilastic (1-1/4 Oz.) Schematic Location: NI	Y	No
Clamp	WP3196256	Whirlpool Clamp, Cord Schematic Location: 27		No
Clamp	WP488878	Whirlpool Clamp, Tube Schematic Location: 1	Y	In Stock In stock 10.95
Clip	2264835	Whirlpool Clip, Condensor Schematic Location: 5		Ships in 30 days 21.95
Clip	WP628379	Whirlpool Clip, Fuse Schematic Location: 3	Y	Ships in 30 days 10.95
Clip	2266467	Whirlpool Clip, Harness Schematic Location: 33		No
Clip	W10812038	Whirlpool Clip, Wire Schematic Location: 16		Ships in 30 days 9.95
Ice Maker, Ice Maker Assembly	4317943	Whirlpool Complete Icemaker Schematic Location: 100 Skill level: - Easy fix less than an hour	Y	In Stock In stock 112.95
Compressor - Sealed System	2217634	Whirlpool Compressor (Includes Items 14, 22, 26, & 29) Schematic Location: 28	Y	No
Condensor	WP2264004	Whirlpool Condenser Schematic Location: 3		Ships in 30 days 78.95
	2263083	Whirlpool Control Box Schematic Location: 12		Ships in 30 days 54.95
Knob, Dial, Button	WP2202885	Whirlpool Control Knob Schematic Location: 22	Y	Ships in 30 days 18.95
	WP503695	Whirlpool Cork, Sealer (1/4 Pound) Schematic Location: NI	Y	In Stock In stock 51.95
	2215384	Whirlpool Corner Filler (Black) Schematic Location: 20		No
	W10859322	Whirlpool Corner Filler (White) Schematic Location: 20	Y	Ships in 21 days 9.95
Cover,Cap	WPW10289690	Whirlpool Cover Schematic Location: 11	Y	In Stock In stock 6.95
Cover,Cap	2252837	Whirlpool Cover, Air Diffuser Schematic Location: 3		Ships in 30 days 76.95
Cover,Cap	2261978	Whirlpool Cover, Air Return Schematic Location: 25		Ships in 30 days 72.95
Cover,Cap	WP2222031	Whirlpool Cover, Crisper Schematic Location: 5	Y	In Stock In stock 96.95
Cover,Cap	WP2215193	Whirlpool Cover, Evaporator Schematic Location: 16		Ships in 30 days 82.95
Cover,Cap	WP2213363	Whirlpool Cover, Hinge (Black) Schematic Location: 6	Y	In Stock In stock 22.95
Cover,Cap	WP2213360	Whirlpool Cover, Hinge (White) Schematic Location: 6	Y	In Stock In stock 23.95
Cover,Cap	WP2217784	Whirlpool Cover, Hole Schematic Location: 20		Ships in 30 days 27.95
Cover,Cap	WP2264132	Whirlpool Cover, Unit Schematic Location: 8		Ships in 30 days 59.95
Pan	WP2256704	Whirlpool Crisper Pan Schematic Location: 4 Skill level: - Fast and very easy fix	Y	In Stock In stock 84.95
Ice Maker, Ice Maker Assembly	W10435665	Whirlpool Cup-water Fill Schematic Location: 14 Skill level: - Easy fix less than an hour		No
	4392899	Whirlpool Customer Touch-up Material (Brush Touch-up Kit (Biscuit)) Schematic Location: NI Skill level: - Fast and very easy fix	Y	In Stock In stock 15.95
	72032	Whirlpool Customer Touch-up Material (Brush Touch-up Kit (Black)) Schematic Location: NI	Y	In Stock In stock 15.95
Washer	72017	Whirlpool Customer Touch-up Material (Brush Touch-up Kit (White)) Schematic Location: NI Skill level: - Fast and very easy fix	Y	In Stock In stock 11.95
	4392901	Whirlpool Customer Touch-up Material (Enamel, Biscuit (12 Oz. Spray Can)) Schematic Location: NI	Y	In Stock In stock 32.95
	285006	Whirlpool Customer Touch-up Material (Enamel, Black (12 Oz. Spray Can)) Schematic Location: NI	Y	In Stock In stock 29.95
	350930	Whirlpool Customer Touch-up Material (Enamel, White (12 Oz. Spray Can)) Schematic Location: NI	Y	In Stock In stock 16.95
Auto Primer	350942	Whirlpool Customer Touch-up Material (Primer, White (12 Oz. Spray Can)) Schematic Location: NI	Y	In Stock In stock 34.95
Sensor, Thermistor, Thermostat	WPW10225581	Whirlpool Defrost, Bi-metal Schematic Location: 31 Skill level: - Easy fix less than an hour	Y	In Stock In stock 32.95
	677969	Whirlpool Do-it-yourself Manual, Ref./ Fzr. Schematic Location: 1		No
Pipe, Tube, Hose, Fitting	W10843121	Whirlpool Drier (Production) Schematic Location: 29 Skill level: - Hard fix - you can do It	Y	In Stock In stock 39.95
Compressor - Sealed System	WPW10143759	Whirlpool Drier (Service) Schematic Location: 29 Skill level: - Hard fix - you can do It	Y	In Stock In stock 26.95
	WP627843	Whirlpool Ejector Schematic Location: 15	Y	In Stock In stock 42.95
Evaporator	WP2263920	Whirlpool Evaporator Assy. Schematic Location: 20	Y	Ships in 30 days 140.95
Motor,Ice Maker Motor	WPW10188389	Whirlpool Evaporator Fan Motor Schematic Location: 29	Y	In Stock In stock 59.95
Evaporator	WP2263928	Whirlpool Evaporator Tray Schematic Location: 13		Ships in 30 days 56.95
Pipe, Tube, Hose, Fitting	2264131	Whirlpool Extension, Tube-heat Schematic Location: 21		Ships in 30 days 19.95
Blade	2264129	Whirlpool Fan Blade Schematic Location: 24		In Stock In stock 48.95
Blade	WP2169142	Whirlpool Fan Blade Schematic Location: 11 Skill level: - Easy fix less than an hour	Y	In Stock In stock 24.95
Bracket, Flange, Blade	WP2197405	Whirlpool Fan Mounting Bracket Schematic Location: 10		No
Bracket, Flange, Blade	WPW10180172	Whirlpool Fan Support Bracket Schematic Location: 9		Ships in 30 days 26.95
Pipe, Tube, Hose, Fitting	2181989	Whirlpool Fitting, Water Tube Schematic Location: 18		No
Gasket , Seal	2263075	Whirlpool Gasket, Air Duct Schematic Location: 35		Ships in 30 days 42.95
Gasket , Seal	W10129686	Whirlpool Gasket, Body Air Diffuser Schematic Location: 33		In Stock In stock 16.95
Glass Shelf	WP2262441	Whirlpool Glass Cover Schematic Location: 3 Skill level: - Fast and very easy fix	Y	In Stock In stock 114.95
Grease	WP542638	Whirlpool Grease, Silicone (1/2 Oz.) Schematic Location: NI	Y	In Stock In stock 35.95
	WP2264447	Whirlpool Grommet (Service) Schematic Location: 14		No
	WP2264462	Whirlpool Grommet, Motor Schematic Location: 27	Y	In Stock In stock 27.95
Wire	W10309399	Whirlpool Harness, Wiring Schematic Location: 24		Ships in 30 days 51.95
Shield	2319224	Whirlpool Heat Shield Schematic Location: 7		Ships in 30 days 59.95
	WP2263749	Whirlpool Heater, Defrost Schematic Location: 4	Y	In Stock In stock 46.95
Hinge	WP2325482	Whirlpool Hinge Butt, Bottom Schematic Location: 14	Y	In Stock In stock 42.95
Hinge	WP2261963	Whirlpool Hinge Butt, Top Schematic Location: 2	Y	In Stock In stock 48.95
Hinge	WP2166037	Whirlpool Hinge, Center Schematic Location: 11 Skill level: - Fast and very easy fix	Y	In Stock In stock 55.95
Hinge	WP2325483	Whirlpool Hinge-pin, Bottom Schematic Location: 15	Y	In Stock In stock 9.95
Holder	WPW10258418	Whirlpool Holder, Meat Pan Schematic Location: 7	Y	No
Knob, Dial, Button	WP2183998	Whirlpool Hole Plug (6) (Black) Schematic Location: 19		Ships in 30 days 14.95
Knob, Dial, Button	WP2151652	Whirlpool Hole Plug (6) (White) Schematic Location: 19		Ships in 30 days 16.95
Hood	WP2316186	Whirlpool Hood And Foil Assembly Schematic Location: 24	Y	No
	WPW10122563	Whirlpool Ice Stripper Schematic Location: 16	Y	In Stock In stock 43.95
Insert	4387491	Whirlpool Insert, Tube Schematic Location: 2	Y	No 9.95
Insulation	2215468	Whirlpool Insulation, Sound Schematic Location: 8		No
Insulation	876029	Whirlpool Kit, Foam Slab (30" X 32-1/2" X 1-1/2") Schematic Location: NI		No
Insulation	876370	Whirlpool Kit, Insulation (2 Pcs.) 3" X 24 " X 48") Schematic Location: NI	Y	In Stock In stock 66.95
Light	8009	Whirlpool Light Bulb Schematic Location: 17 Skill level: - Fast and very easy fix	Y	In Stock In stock 15.95
Lens	9791702	Whirlpool Light Shield Schematic Location: 18		No
Pan	WP2261934	Whirlpool Meat Pan Schematic Location: 8	Y	No 79.95
	628370	Whirlpool Modular Icemaker Service Sheet Schematic Location: 1		No
Motor,Ice Maker Motor	8201515	Whirlpool Module Assmbly (Includes Item 9) Schematic Location: 26	Y	In Stock In stock 87.95
Ice Maker, Ice Maker Assembly	WPW10190929	Whirlpool Mold & Heater Assembly (Also Order 542638 Silicone Grease) Schematic Location: 13 Skill level: - Easy fix less than an hour	Y	No 126.95
Pump, Motor	WP2188875	Whirlpool Motor, Condensor Schematic Location: 11		No
Nut	WP627018	Whirlpool Nut, Compression Schematic Location: 7	Y	In Stock In stock 10.95
	WP2166261	Whirlpool Pan, Ice Cube Schematic Location: 1		No
	4392900	Whirlpool Refinishing Material (Enamel, Biscuit (1 Qt. Uncut)) Schematic Location: NI		No
	799344	Whirlpool Refinishing Material (Enamel, White (1 Qt. Uncut)) Schematic Location: NI		Ships in 30 days 100.95
Terminal	833938	Whirlpool Refinishing Material (Kit, Terminal Connector) Schematic Location: NI	Y	Ships in 30 days 9.95
Clip	WP2315522	Whirlpool Retainer Thermostat Schematic Location: 18	Y	In Stock In stock 10.95
	2256983	Whirlpool Rivet Schematic Location: 36		No
	939962	Whirlpool Rivet Schematic Location: 2		Ships in 30 days 16.95
Switch	WP1118894	Whirlpool Rocker Arm Switch Schematic Location: 19 Skill level: - Easy fix less than an hour		No
Axle, Roller, Shaft Wheel	WPW10475495	Whirlpool Roller Schematic Location: 17	Y	In Stock In stock 22.95
Axle, Roller, Shaft Wheel	WPW10142530	Whirlpool Roller, Front Schematic Location: 3	Y	Ships in 21 days 52.95
Screw	WP681249	Whirlpool Screw Schematic Location: 22	Y	In Stock In stock 6.95
Screw	W10001280	Whirlpool Screw Schematic Location: 20		Ships in 30 days 12.95
Screw	WP488163	Whirlpool Screw Schematic Location: 10	Y	In Stock In stock 9.95
Screw	489136	Whirlpool Screw Schematic Location: 9		Ships in 30 days 10.95
Screw	WP489489	Whirlpool Screw Schematic Location: 25		Ships in 30 days 6.95
Screw	WPW10171469	Whirlpool Screw Schematic Location: 6	Y	In Stock In stock 10.95
Screw	WP487353	Whirlpool Screw Schematic Location: 32		Ships in 30 days 6.95
Screw	WP489474	Whirlpool Screw Schematic Location: 30	Y	No 7.95
Screw	WP489478	Whirlpool Screw Schematic Location: 28	Y	In Stock In stock 6.95
Screw	WP489399	Whirlpool Screw Schematic Location: 14	Y	In Stock In stock 6.95
Screw	WP489174	Whirlpool Screw Schematic Location: 5		Ships in 30 days 9.95
Screw	WP488729	Whirlpool Screw Schematic Location: 16 Skill level: - Fast and very easy fix	Y	In Stock In stock 6.95
Screw	WP489497	Whirlpool Screw Schematic Location: 13 Skill level: - Fast and very easy fix	Y	In Stock In stock 10.95
Screw	WP489442	Whirlpool Screw Schematic Location: 10	Y	In Stock In stock 10.95
Screw	WP488787	Whirlpool Screw Fill Tube Schematic Location: 21	Y	In Stock In stock 10.95
Screw	WPW10133299	Whirlpool Screw, Leveler Schematic Location: 9	Y	In Stock In stock 14.95
Gasket , Seal	WP1106508	Whirlpool Seal Schematic Location: 5	Y	In Stock In stock 9.95
	212643	Whirlpool Sealer, Gum (4 Feet) Schematic Location: NI	Y	In Stock In stock 42.95
	WP505587	Whirlpool Sealer, Mastic (1 Qt.) Schematic Location: NI	Y	In Stock In stock 64.95
Glass Shelf	W11181679	Whirlpool Shelf Assembly Schematic Location: 2	Y	In Stock In stock 125.95
Glass Shelf	WPW10283871	Whirlpool Shelf, Glass Freezer Schematic Location: 6		Ships in 30 days 105.95
Shield	2266360	Whirlpool Shield,electrical Schematic Location: 35		Ships in 30 days 19.95
Hinge	WP2201567	Whirlpool Shim, Bottom Hinge Schematic Location: 17	Y	In Stock In stock 9.95
	2215385	Whirlpool Shim, Hinge Center (Black) Schematic Location: 12	Y	Ships in 29 days 42.95
	WP2201566	Whirlpool Shim, Hinge Center (White) Schematic Location: 12		No
	WP627792	Whirlpool Shut Off Arm Schematic Location: 23	Y	In Stock In stock 46.95
Sleeve	2264838	Whirlpool Sleeve Schematic Location: 31		Ships in 30 days 42.95
Slide	WP2176222	Whirlpool Slide, Humidity Control Schematic Location: 10	Y	In Stock In stock 19.95
Socket	4387478	Whirlpool Socket, Light Schematic Location: 8	Y	In Stock In stock 40.95
Spacer	2266506	Whirlpool Spacer-back-cb Schematic Location: 4		Ships in 30 days 17.95
	W10805623	Whirlpool Start Device Combination (Start Relay, Overload For Production Compressor Only) (Service) Schematic Location: 22	Y	In Stock In stock 53.95
	WP2225929	Whirlpool Start Device, Combination (Start Relay, Overload For Production Compressor Only) (Production) Schematic Location: 22	Y	In Stock In stock 58.95
Wire	WPW10339879	Whirlpool Strap Schematic Location: 30	Y	In Stock In stock 6.95
Housing	WP2195914	Whirlpool Support Schematic Location: 17	Y	Ships in 6 days 48.95
	WPW10222450	Whirlpool Support Plate, Compressor Schematic Location: 1		Ships in 30 days 59.95
Tape	479502	Whirlpool Tape, Vinyl (3/4 X 108") Schematic Location: NI		No
Sensor, Thermistor, Thermostat	WPW10511937	Whirlpool Thermostat Schematic Location: 13	Y	In Stock In stock 83.95
Sensor, Thermistor, Thermostat	WP627985	Whirlpool Thermostat (Also Order 542369 Cement Alumilastic) Schematic Location: 19 Skill level: - Easy fix less than an hour	Y	In Stock In stock 47.95
Sensor, Thermistor, Thermostat	WP2196003	Whirlpool Thermostat Tube Barrier Schematic Location: 15	Y	In Stock In stock 9.95
	511873	Whirlpool Touch-up, White Porcelain (2 Oz.) Schematic Location: NI	Y	Ships in 30 days 32.95
Glass Shelf	WPW10283860	Whirlpool Trim, Shelf (Front) Schematic Location: 11	Y	In Stock In stock 132.95
Pipe, Tube, Hose, Fitting	2316181	Whirlpool Tube, Discharge (Incl. Pre Cooler) Schematic Location: 12		Ships in 30 days 46.95
Extension	2264278	Whirlpool Tube, Drain Schematic Location: 32		Ships in 30 days 39.95
Pipe, Tube, Hose, Fitting	2212848	Whirlpool Tube, Process Schematic Location: 9		No
Pipe, Tube, Hose, Fitting	W10823511	Whirlpool Tube, Water Schematic Location: 4	Y	In Stock In stock 25.95
Pipe, Tube, Hose, Fitting	WP2174755	Whirlpool Tube, Water Inlet Schematic Location: 8	Y	Ships in 15 days 19.95
	2316016	Whirlpool Use & Care Guide Schematic Location: 1		No
Valve, Float Assembly	978028	Whirlpool Valve, Access (1/2") Schematic Location: NI		No
Valve, Float Assembly	WP978025	Whirlpool Valve, Access (1/4") Schematic Location: NI	Y	In Stock In stock 38.95
Valve, Float Assembly	876764	Whirlpool Valve, Access (3/16") Schematic Location: NI	Y	In Stock In stock 42.95
Valve, Float Assembly	978030	Whirlpool Valve, Access (3/4") Schematic Location: NI		In Stock In stock 46.95
Valve, Float Assembly	978027	Whirlpool Valve, Access (3/8") Schematic Location: NI	Y	In Stock In stock 44.95
Valve, Float Assembly	978026	Whirlpool Valve, Access (5/16") Schematic Location: NI	Y	In Stock In stock 42.95
Valve, Float Assembly	978029	Whirlpool Valve, Access (5/8") Schematic Location: NI	Y	In Stock In stock 42.95
Inlet	WP2315576	Whirlpool Valve, Solenoid Schematic Location: 6	Y	In Stock In stock 52.95
Washer	WP489467	Whirlpool Washer Schematic Location: 21	Y	In Stock In stock 10.95
Washer	WP487576	Whirlpool Washer Schematic Location: 7 Skill level: - Fast and very easy fix	Y	In Stock In stock 10.95
	8201619	Whirlpool Wedge, Evaporator Schematic Location: 19		Ships in 1 days 63.95
Wire	2265930	Whirlpool Wire Assembly, Control Box Schematic Location: 7		Ships in 30 days 52.95
Wire	WPW10151677	Whirlpool Wire Assy, Unit Schematic Location: 15		Ships in 30 days 62.95
Wire	W10290502	Whirlpool Wiring, Freezer (Includes Item 31) Schematic Location: 21	Y	In Stock In stock 102.95

Videos

Cleaning refrigerator condenser coils

How to Level your Refrigerator and Doors

How to remove refrigerator doors

Refrigerator Shelf Adjustment video

About Whirlpool

Whirlpool Corporation is the number one major appliance manufacturer in the world, and includes brands such as Whirlpool, KitchenAid, Maytag, Consul, Brastemp, Amana, Bauknecht, Jenn-Air, Indesit, among others. The Whirlpool Corporation is an American multinational manufacturer and marketer of home appliances, headquartered in Benton Charter Township, Michigan, United States, near Benton Harbor, Michigan. In many Whirlpool appliances, remarkable sense and adapt technology responds to the needs of your clothes, your meals and your foods. By adapting to each situation, intuitive sensors make key refinementsprecisely adjusting water levels for the best clean possible or measuring moisture content for better baking. So your fabrics look newer longer, meals cook more evenly, and foods stay cool and flavorful.

W8RXNGMWB00 Whirlpool Top-mount Refrigerator Black Replacement Parts

Parts Prediction

Whirlpool
4317943
Complete Icemaker

Whirlpool
W10435665
Cup-water Fill

Whirlpool
WPW10190929
Mold & Heater Assembly (Also O

Parts List

Videos

About Whirlpool

Get 15% Off Your Next Order!

Contact Info

My Account

W8RXNGMWB00 Whirlpool Top-mount Refrigerator Black Replacement Parts

Parts Prediction

Whirlpool4317943Complete Icemaker

WhirlpoolW10435665Cup-water Fill

WhirlpoolWPW10190929Mold & Heater Assembly (Also O

Parts List

Videos

About Whirlpool

Contact Info

My Account

Whirlpool
4317943
Complete Icemaker

Whirlpool
W10435665
Cup-water Fill

Whirlpool
WPW10190929
Mold & Heater Assembly (Also O
