Manufacturer
Whirlpool Replacement Parts

Model Number
GI6FARXXY00

Description
26 Cu. Ft. French Door Bottom Mount Refrigerator

Interactive Exploded View

Interactive Exploded View - view assemblies diagrams and click the part you need

CategoryPart NumberDescriptionDemand
Bracket, Flange, BladeWPW10284682
Whirlpool Adapter (Left)
Schematic Location: 21
Y
Bracket, Flange, BladeWPW10284683
Whirlpool Adapter (Right)
Schematic Location: 21
Y
WPW10175514
Whirlpool Arm, Shutoff
Schematic Location: 2
Y
Axle, Roller, Shaft Wheel67006434
Whirlpool Axle, Roller (2) (Replaces: 12477202)
Schematic Location: 30
Y
PlateW10480111
Whirlpool Basepan (Replaces: W10210985)
Schematic Location: 3
BasketWPW10348249
Whirlpool Basket, Upper (Replaces: W10146448)
Schematic Location: 6
WPW10293682
Whirlpool Bin, Lower
Schematic Location: 7
Y
CondensorWP12825803
Whirlpool Blade, Fan
Schematic Location: 2
Skill level: - Easy fix less than an hour
Y
Fan BladeWP67006337
Whirlpool Blade, Fan (Evaporator) (Replaces: 12986101)
Schematic Location: 24
Y
Door,Remote Control DoorWP67003405
Whirlpool Block, Pivot (Replaces: 12698403)
Schematic Location: 3
Skill level: - Fast and very easy fix
Y
BoardWPW10285199
Whirlpool Board, Hv Control
Schematic Location: 35
W10285271
Whirlpool Box, Hv Control
Schematic Location: 16
WP12642303WD
Whirlpool Brace, Crisper Cover
Schematic Location: 11
Bracket, Flange, BladeWPW10330991
Whirlpool Bracket, Door Slide (Left) (Replaces: W10122147)
Schematic Location: 13
Y
Bracket, Flange, BladeWPW10330993
Whirlpool Bracket, Door Slide (Right) (Replaces: W10122148)
Schematic Location: 13
Y
Bracket, Flange, Blade67006325
Whirlpool Bracket, Filter Base (Replaces: 12955901)
Schematic Location: 15
Y
Bracket, Flange, BladeW10174827
Whirlpool Bracket, Ice Door
Schematic Location: 8
Bracket, Flange, BladeW10309865
Whirlpool Bracket, Solenoid
Schematic Location: 15
Bracket, Flange, Blade67006324
Whirlpool Bracket, Water Tank & Valve (Replaces: 12956001)
Schematic Location: 17
Leg, Foot, CasterWPW10141622
Whirlpool Brake, Foot
Schematic Location: 34
Y
Door,Remote Control DoorWPW10224961
Whirlpool Bucket, Medium
Schematic Location: 5
Y
Door,Remote Control DoorWPW10212139
Whirlpool Bucket, Small
Schematic Location: 4
Skill level: - Fast and very easy fix
Y
BinWPW10323808
Whirlpool Bucket, Upper
Schematic Location: 3
Y
Light8009
Whirlpool Bulb, Light (Replaces: 2255743N)
Schematic Location: 8
Skill level: - Fast and very easy fix
Y
NOTEEncompass Cabinet (Not A Servicable Part)
Schematic Location: 26
CapacitorWPW10662129
Whirlpool Capacitor (Replaces: 2264017)
Schematic Location: 5
Skill level: - Easy fix less than an hour
Y
AdhesiveWP4317852
Whirlpool Cement, Alumilastic (1-1/4 Oz.) (Replaces: 542639)Y
ClampM0108107
Whirlpool Clamp, Tube
Schematic Location: 8
Cleaner31462A
Whirlpool Cleaner, Stnls Steel Magic (Replaces: 20000008)
ClipWP628379
Whirlpool Clip
Schematic Location: 19
12996601
Whirlpool Clip, Bushing Wire (Left Door)
Schematic Location: 19
ClampW10281329
Whirlpool Clip, Drier
Schematic Location: 19
Clip67006338
Whirlpool Clip, Fan Motor (Replaces: 12956601)
Schematic Location: 15
ClipW10165970
Whirlpool Clip, Fan Motor (Replaces: 12956603)
Schematic Location: 6
Y
Clip10428101
Whirlpool Clip, Heater
Schematic Location: 25
WP67003639
Whirlpool Closure, Door (Black) (Replaces: 12028505B)
Schematic Location: 16
Y
WP12028505AP
Whirlpool Closure, Door (Stainless)
Schematic Location: 16
Skill level: - Fast and very easy fix
Y
WP67003638
Whirlpool Closure, Door (White) (Replaces: 12028505W)
Schematic Location: 16
Y
Compressor - Sealed SystemW10160407
Whirlpool Compressor (Includes Items 11,12,17,27) (Replaces: W10134623)
Schematic Location: 28
Y
CondensorWPW10346415
Whirlpool Condenser (Replaces: W10135026)
Schematic Location: 18
Y
ConnectorWP4373559
Whirlpool Connector, Water (Replaces: 2209709)
Schematic Location: 34
Skill level: - Fast and very easy fix
Y
WP503695
Whirlpool Cork Sealer (1/4 Pound)Y
Coupling10244904
Whirlpool Coupling (Replaces: 10244904Sp)
Cover,CapW10290556
Whirlpool Cover
Schematic Location: 12
Cover,Cap12961602
Whirlpool Cover, Control Box
Schematic Location: 7
Cover,Cap67003485
Whirlpool Cover, Corner (2) (Black) (Replaces: 12587703B)
Schematic Location: 17
Y
WP12587703AP
Whirlpool Cover, Corner (2) (Stainless)
Schematic Location: 17
Cover,Cap12587703W
Whirlpool Cover, Corner (2) (White)
Schematic Location: 17
Cover,CapW10308421
Whirlpool Cover, Evap
Schematic Location: 11
Cover,Cap12981401B
Whirlpool Cover, Fill Tube (Black)
Schematic Location: 6
Cover,Cap12981401W
Whirlpool Cover, Fill Tube (White)
Schematic Location: 6
Cover,CapWPW10309869
Whirlpool Cover, Ice Box Harness
Schematic Location: 21
Y
Cover,Cap67006318
Whirlpool Cover, Light (Replaces: 12905902)
Schematic Location: 9
Cover,CapWPW10319847
Whirlpool Cover, Mc Back
Schematic Location: 30
Cover,CapWP67003924
Whirlpool Cover, Thermistor (Replaces: 12815301)
Schematic Location: 31
Y
Cover,CapW10337647
Whirlpool Cover, Top Hinge (Left) (Black) (Replaces: 12962301B)
Schematic Location: 13
Cover,CapWPW10337648
Whirlpool Cover, Top Hinge (Left) (Stainless) (Replaces: 12962301Ap)
Schematic Location: 13
Y
Cover,CapWPW10337634
Whirlpool Cover, Top Hinge (Left) (White) (Replaces: 12962301W)
Schematic Location: 13
Y
Cover,CapWP67005956
Whirlpool Cover, Top Hinge (Right) (Black) (Replaces: 12962302B)
Schematic Location: 5
Cover,CapWPW10191117
Whirlpool Cover, Top Hinge (Right) (Stainless) (Replaces: 12962302Ap)
Schematic Location: 5
Y
Cover,Cap67005958
Whirlpool Cover, Top Hinge (Right) (White) (Replaces: 12962302W)
Schematic Location: 5
Y
Cover,Cap67006329
Whirlpool Cover, Water Tank (Lower) (Replaces: 12960001)
Schematic Location: 13
Cover,Cap67006330
Whirlpool Cover, Water Tank (Upper) (Replaces: 12960101)
Schematic Location: 11
CupW10122561
Whirlpool Cup, Fill
Schematic Location: 3
72032
Whirlpool Customer Touch-up Material (Brush Touch-up Kit (Black))Y
Washer72017
Whirlpool Customer Touch-up Material (Brush Touch-up Kit (White))
Skill level: - Fast and very easy fix
Y
4392899
Whirlpool Customer Touch-up Material (Enamel, Bisque (.6 Oz. Bottle))
Skill level: - Fast and very easy fix
Y
4392901
Whirlpool Customer Touch-up Material (Enamel, Bisque (12 Oz. Spray Can))Y
285006
Whirlpool Customer Touch-up Material (Enamel, Black (13 Oz. Spray Can))Y
350930
Whirlpool Customer Touch-up Material (Enamel, White (13 Oz. Spray Can)Y
Auto Primer350942
Whirlpool Customer Touch-up Material (Primer, White (13 Oz. Spray Can))Y
12963002SP
Whirlpool Dam (Left Side)
Schematic Location: 23
12963102SP
Whirlpool Dam (Right Side)
Schematic Location: 23
ControlWPW10196393
Whirlpool Damper, Control
Schematic Location: 11
Skill level: - Easy fix less than an hour
Y
WPW10309864
Whirlpool Divider, Ice Box
Schematic Location: 8
Y
W10146439
Whirlpool Divider, Upper Basket
Schematic Location: 5
Door,Remote Control DoorW10346235
Whirlpool Door, Ice (Replaces: W10174811)
Schematic Location: 11
Door,Remote Control Door13107303BQ
Whirlpool Door, Left (Black) (Replaces: 13107303B)
Schematic Location: 1
Door,Remote Control Door13107305SQ
Whirlpool Door, Left (Stainless) (Replaces: 13107305S)
Schematic Location: 1
Door,Remote Control Door13107303WQ
Whirlpool Door, Left (White) (Replaces: 13107303W)
Schematic Location: 1
Door,Remote Control Door13107304BQ
Whirlpool Door, Right (Black) (Replaces: 13107304B)
Schematic Location: 23
WPW10330534
Whirlpool Drawer, Pantry
Schematic Location: 3
Compressor - Sealed SystemWPW10143759
Whirlpool Drier
Schematic Location: 27
Skill level: - Hard fix - you can do It
Y
W10318914
Whirlpool Ejector
Schematic Location: 4
799340
Whirlpool Enamel, Black (1 Qt. Uncut)
799344
Whirlpool Enamel, White (1 Qt. Uncut)
Cover,CapW10118193
Whirlpool Enclosure, Water Valve Connector
Schematic Location: 25
DrawerW10395616
Whirlpool Endcap, Pantry (Left) (Replaces: W10326936)
Schematic Location: 24
Skill level: - Fast and very easy fix
Y
W10395615
Whirlpool Endcap, Pantry (Right) (Replaces: W10326934)
Schematic Location: 24
Y
Evaporator12002730
Whirlpool Evaporator (Replaces: 12959803)
Schematic Location: 22
Y
ExtensionWPW10121440
Whirlpool Extension, Shutoff Arm
Schematic Location: 10
ExtensionW10367416
Whirlpool Extension-basepan (Replaces: W10206338)
Schematic Location: 32
ShieldW10233560
Whirlpool False Wall, Dispenser (Black)
Schematic Location: 3
ShieldW10215699
Whirlpool False Wall, Dispenser (White)
Schematic Location: 3
ShieldW10299897
Whirlpool False, Wall, Dispenser (Stainless)
Schematic Location: 3
FastenerW10206339
Whirlpool Fastener-basepan
Schematic Location: 33
Insulation12820505
Whirlpool Fiber, Acoustic
Schematic Location: 33
FilterEDR4RXD1
Whirlpool Filter, Water (Replaces: Ukf8001axx)
Schematic Location: 14
Skill level: - Fast and very easy fix
Y
ShieldW10142628
Whirlpool Foil, Ice Box
Schematic Location: 20
CrisperWP67003854
Whirlpool Frame, Crisper (Replaces: 12796301Sp)
Schematic Location: 12
Y
Door,Remote Control Door12977863BQ
Whirlpool Freezer Door (Black) (Replaces: 12977834B)
Schematic Location: 1
Door,Remote Control Door12977863WQ
Whirlpool Freezer Door (White) (Replaces: W10174214)
Schematic Location: 1
FunnelW10815413
Whirlpool Funnel, Drain (Replaces: D7753903)
Schematic Location: 27
Y
Gasket , SealB5759655
Whirlpool Gasket Mc Back
Schematic Location: 4
Gasket , SealWP67006341
Whirlpool Gasket, Damper (Replaces: 12920001)
Schematic Location: 9
Y
Gasket , SealWPW10435969
Whirlpool Gasket, Door (Black) (Replaces: W10163898)
Schematic Location: 8
Gasket , SealWPW10436253
Whirlpool Gasket, Door (Black) (Replaces: W10164044)
Schematic Location: 3
Y
Gasket , SealW10443238
Whirlpool Gasket, Door (Stainless) (Replaces: W10163991)
Schematic Location: 8
Y
Gasket , SealWPW10714545
Whirlpool Gasket, Door (Stainless) (Replaces: W10164045)
Schematic Location: 3
Skill level: - Fast and very easy fix
Y
Gasket , SealWPW10443236
Whirlpool Gasket, Door (White) (Replaces: W10163896)
Schematic Location: 8
Gasket , SealWPW10443321
Whirlpool Gasket, Door (White) (Replaces: W10164043)
Schematic Location: 3
Y
Gasket , SealWPB8381501
Whirlpool Gasket, Drain Tube
Schematic Location: 29
Gasket , SealW10856123
Whirlpool Gasket, Foam
Schematic Location: 7
Gasket , Seal67003731
Whirlpool Gasket, Foam (Replaces: A3189397)
Schematic Location: 20
Gasket , Seal67006429
Whirlpool Gasket, Hv Control (Replaces: 12957801K)
Schematic Location: 29
Drawer12002497
Whirlpool Gear (Includes Both)
Schematic Location: 3
Skill level: - Easy fix less than an hour
Y
Bracket, Flange, BladeW10348259
Whirlpool Gear Mount (Left) (Replaces: W10233898)
Schematic Location: 11
Bracket, Flange, BladeW10348260
Whirlpool Gear Mount (Right) (Replaces: W10233899)
Schematic Location: 11
Gear, WheelWPW10474715
Whirlpool Gear Spur (Left) (Replaces: W10146446)
Schematic Location: 10
Y
Gear, WheelWPW10474716
Whirlpool Gear Spur (Right) (Replaces: W10158749)
Schematic Location: 10
Y
Shelf Support ComponentsWP12204826
Whirlpool Glass, Crisper Cover
Schematic Location: 13
Y
SlideW10346889
Whirlpool Glide, Pantry (Left)
Schematic Location: 25
SlideW10346888
Whirlpool Glide, Pantry (Right)
Schematic Location: 25
GreaseWP542638
Whirlpool Grease, Silicone (1/2 Oz.)Y
67006382
Whirlpool Grille, Air (Replaces: 12959901)
Schematic Location: 22
67006316
Whirlpool Grille, Air (Replaces: 13008201)
Schematic Location: 5
WPW10534153
Whirlpool Grille, Toe (Black) (Replaces: W10244561)
Schematic Location: 22
Y
Grille KickplateWPW10534155
Whirlpool Grille, Toe (Stainless) (Replaces: W10244558)
Schematic Location: 22
Y
WPW10534154
Whirlpool Grille, Toe (White) (Replaces: W10244559)
Schematic Location: 22
Y
WPW10169124
Whirlpool Grommet (4) (Replaces: 10835903Sp)
Schematic Location: 17
WPW10137529
Whirlpool Grommet, Cond (4)
Schematic Location: 13
W10151687
Whirlpool Grommet, Fan Motor
Schematic Location: 7
67006339
Whirlpool Grommet, Fan Motor (2) (Replaces: 12951101)
Schematic Location: 25
Y
2319835
Whirlpool Grommet-condenser
Schematic Location: 14
Cover,CapW10316171
Whirlpool Guard, Splash
Schematic Location: 37
GuideW10310959
Whirlpool Guide, Energy
Schematic Location: 1
WP67005912
Whirlpool Handle, Crisper Pan (2) (Replaces: 12727402Sp)
Schematic Location: 2
HandleWPW10222985
Whirlpool Handle, Door (Black)
Schematic Location: 9
HandleWPW10223023K
Whirlpool Handle, Door (Black) (Replaces: W10223023)
Schematic Location: 2
HandleWPW10223019K
Whirlpool Handle, Door (Stainless) (Replaces: W10223019)
Schematic Location: 9
Y
HandleWPW10223025K
Whirlpool Handle, Door (Stainless) (Replaces: W10223025)
Schematic Location: 2
Y
HandleWPW10223022K
Whirlpool Handle, Door (White)
Schematic Location: 2
HandleWPW10222984K
Whirlpool Handle, Door (White) (Replaces: W10222984)
Schematic Location: 9
Y
WireWPW10322960

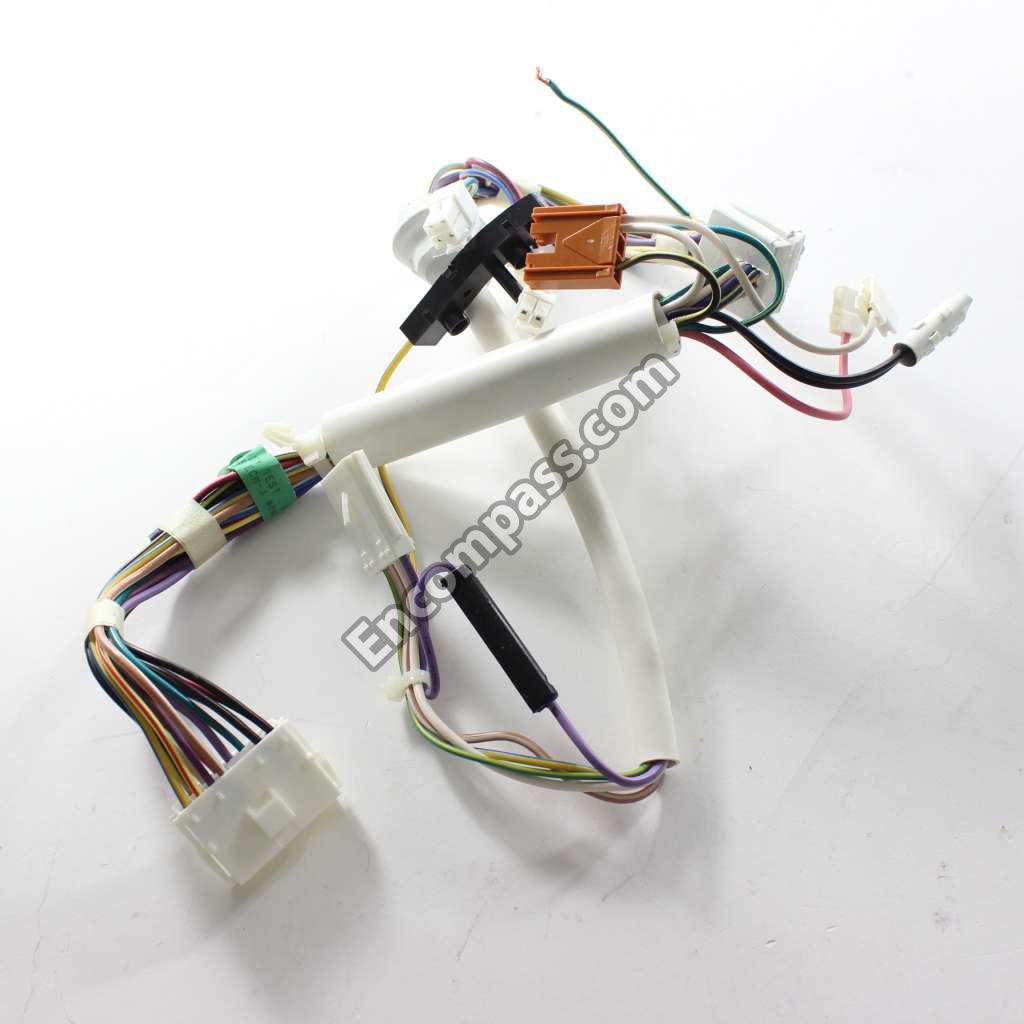

Whirlpool Harness, Icemaker
Schematic Location: 15
Heating ElementWP12729123
Whirlpool Heater, Defrost
Schematic Location: 10
Skill level: - Easy fix less than an hour
Y
Hinge13000007ED
Whirlpool Hinge, Center (Lt) (Black)
Schematic Location: 24
HingeWP13000001AP
Whirlpool Hinge, Center (Lt) (Stainless)
Schematic Location: 24
Hinge13000001WD
Whirlpool Hinge, Center (Lt) (White)
Schematic Location: 24
Hinge13000008ED
Whirlpool Hinge, Center (Rt) (Black)
Schematic Location: 15
HingeWP13000002AP
Whirlpool Hinge, Center (Rt) (Stainless)
Schematic Location: 15
Hinge13000002WD
Whirlpool Hinge, Center (Rt) (White)
Schematic Location: 15
HingeWP12963204ED
Whirlpool Hinge, Top Left
Schematic Location: 18
Y
HingeWP12963205ED
Whirlpool Hinge, Top Right
Schematic Location: 10
Y
Housing67001035
Whirlpool Housing, Light (Replaces: 12476401Sp)
Schematic Location: 10
Y
Housing12806601
Whirlpool Housing, Light (Replaces: 12806601V)
Schematic Location: 10
Y
ContainerWPW10562191
Whirlpool Ice Bin Assembly (Includes Auger) (Replaces: W10337301)
Schematic Location: 1
WPW10122563
Whirlpool Ice Stripper
Schematic Location: 5
Y
Ice Maker, Ice Maker AssemblyWPW10300024
Whirlpool Icemaker Assembly
Schematic Location: 100
Skill level: - Easy fix less than an hour
Y
WPW10312691
Whirlpool Impinger Assy.
Schematic Location: 14
Y
InsertW10121282
Whirlpool Inlet, Blower
Schematic Location: 2
Y
InsertWPW10121434
Whirlpool Insert, Fill Cup
Schematic Location: 20
Y
Insulation876029
Whirlpool Kit, Foam Slab (30`` X 32-1/2`` X 1-1/2``)
Insulation876370
Whirlpool Kit, Insulation (2 Pcs. X 3`` X 24`` X 48``)
Terminal833938
Whirlpool Kit, Terminal ConnectorY
W10273464
Whirlpool Ladder, Center
Schematic Location: 14
W10251968
Whirlpool Ladder, Side (Left)
Schematic Location: 7
Y
W10251965
Whirlpool Ladder, Side (Right)
Schematic Location: 7
IndicatorW10853390

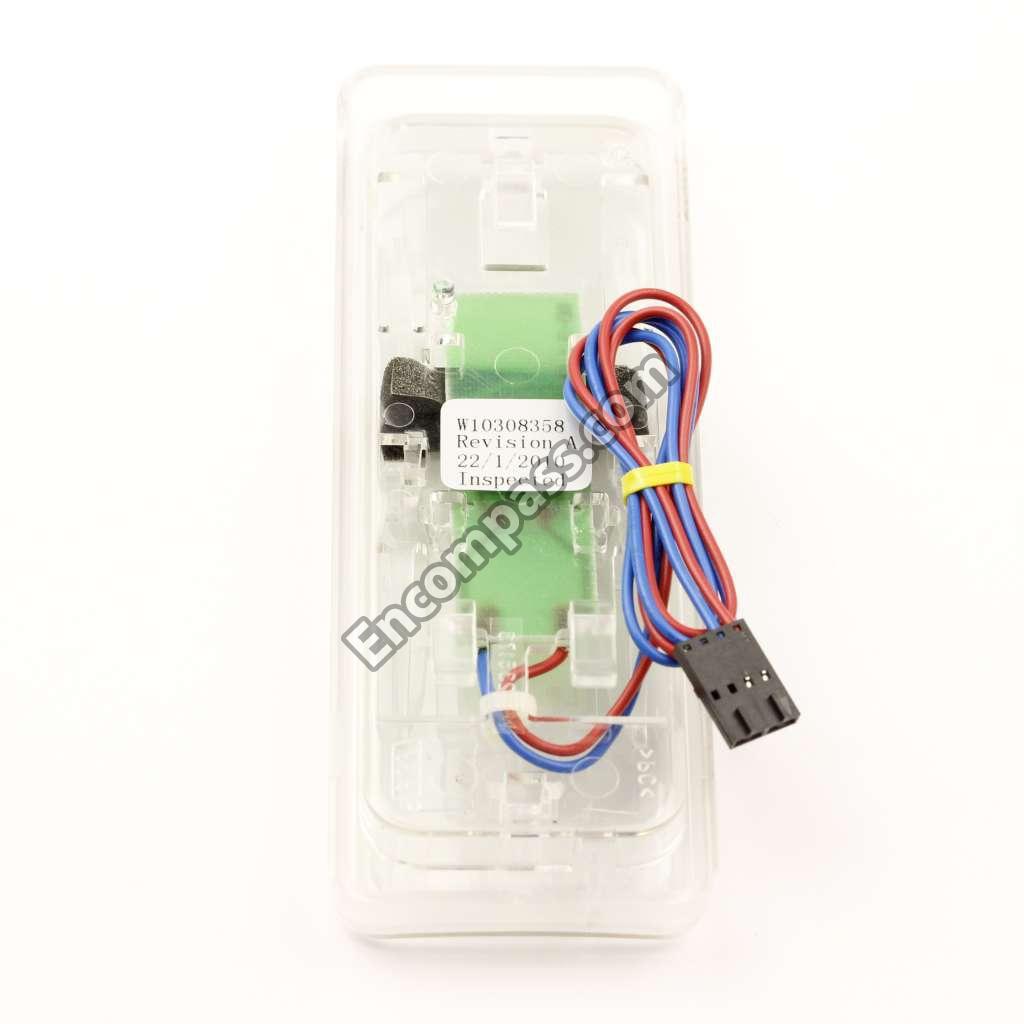

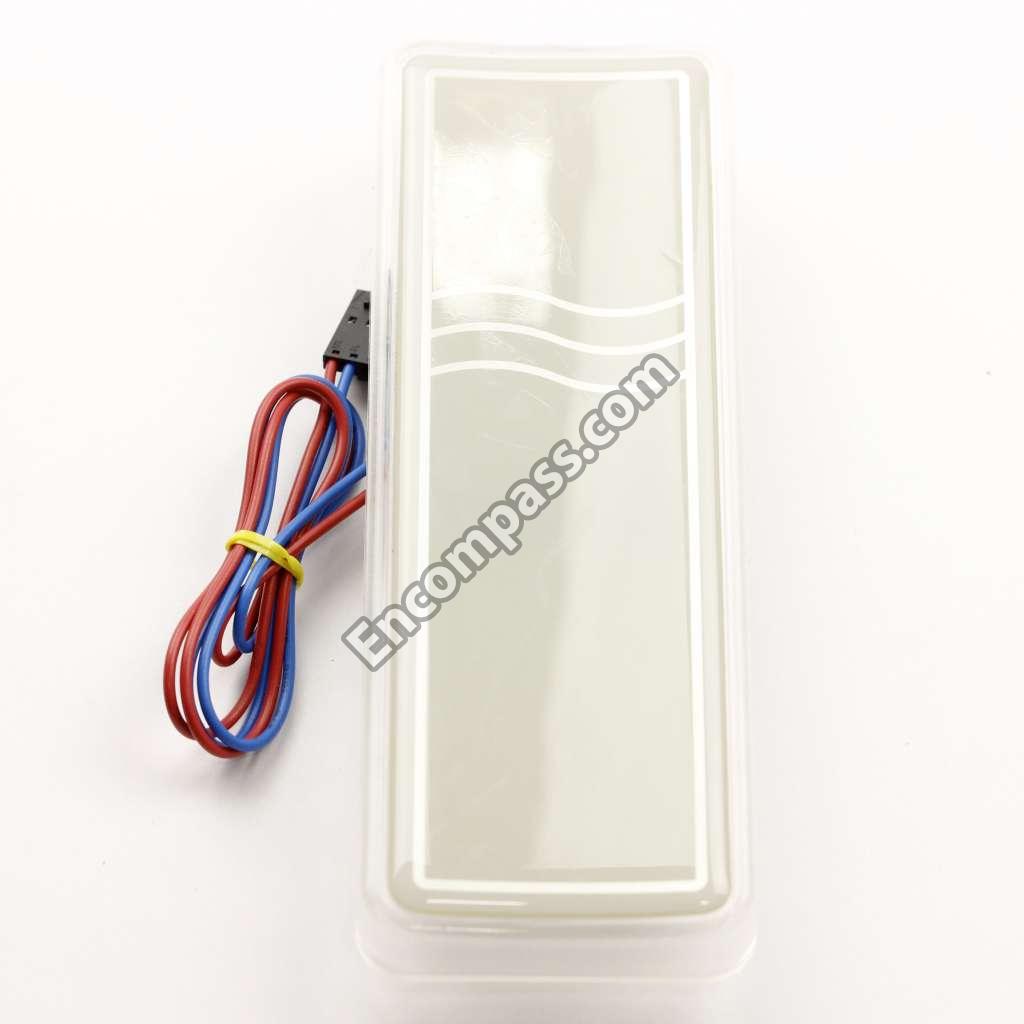

Whirlpool Led
Schematic Location: 17
Skill level: - Easy fix less than an hour
Cover,CapW10118194
Whirlpool Lid, Enclosure
Schematic Location: 26
Y
Cover,Cap12957702
Whirlpool Lid, Hv Control (Replaces: 12957702K)
Schematic Location: 23
Cover,CapWP67006331
Whirlpool Lid, Water Filter (Replaces: 12960301)
Schematic Location: 12
Y
InsertW10118612
Whirlpool Liner, Divider
Schematic Location: 13
Y
Ice Maker, Ice Maker Assembly8201515
Whirlpool Module Assembly (Replaces: 626691)
Schematic Location: 17
Y
ModuleWP67006423
Whirlpool Module, Freezer Light (Replaces: 13027902Sp)
Schematic Location: 14
Y
Wire12952005
Whirlpool Module, Fz Light (Replaces: 12952005Sp)
Light12905803
Whirlpool Module, Light
Schematic Location: 2
WPW10300025
Whirlpool Mold & Heater Assembly (Also Order 542638 Grease)
Schematic Location: 1
Y
Pump, MotorWPW10309868
Whirlpool Motor, Auger
Schematic Location: 10
Y
Pump, MotorWPW10276647
Whirlpool Motor, Evaporator Fan
Schematic Location: 26
Y
Pump, MotorWPW10308033
Whirlpool Motor, Fan
Schematic Location: 4
Skill level: - Easy fix less than an hour
CondensorWPW10239053
Whirlpool Motor, Fan
Schematic Location: 24
Skill level: - Easy fix less than an hour
Pump, MotorWPW10205979
Whirlpool Motor, Ice Door
Schematic Location: 9
Y
W10190541
Whirlpool Mount, Crisper
Schematic Location: 16
Rail12722815B
Whirlpool Mullion, Door (Black)
Schematic Location: 14
SlideWP12722815AP
Whirlpool Mullion, Door (Stainless)
Schematic Location: 14
Y
RailWP12722815W
Whirlpool Mullion, Door (White)
Schematic Location: 14
Y
PlateWP2220214
Whirlpool Nameplate
Schematic Location: 22
PadW10368729
Whirlpool Pad, Ice (Black) (Replaces: W10308359)
Schematic Location: 4
PadWPW10368730
Whirlpool Pad, Ice (Stainless) (Replaces: W10308361)
Schematic Location: 4
Y
PadW10308358
Whirlpool Pad, Ice (White)
Schematic Location: 4
PadW10334822
Whirlpool Pad, Water (Black) (Replaces: W10307622)
Schematic Location: 5
PadW10307621
Whirlpool Pad, Water (White)
Schematic Location: 5
DrawerWP67004515
Whirlpool Pan, Crisper (2) (Replaces: 12804601Sp)
Schematic Location: 10
Skill level: - Fast and very easy fix
Y
WPW10655368
Whirlpool Pan, Drain
Schematic Location: 8
Y
FilterWP12664501
Whirlpool Plug, Bypass (Replaces: 12664501Sp)
Schematic Location: 19
Skill level: - Fast and very easy fix
RailWPW10516603
Whirlpool Rack-left (Replaces: W10284694)
Schematic Location: 12
RailWPW10516602
Whirlpool Rack-right (Replaces: W10284695)
Schematic Location: 12
DrawerWPW10326469
Whirlpool Rail, Center (Replaces: 12796401)
Schematic Location: 30
Skill level: - Fast and very easy fix
Y
ClipWP2315522
Whirlpool Retainer, Thermostat
Schematic Location: 7
Y
Axle, Roller, Shaft WheelWP67005149
Whirlpool Roller (2) (Replaces: 12477102)
Schematic Location: 15
Y
Axle, Roller, Shaft WheelWPW10515763
Whirlpool Roller Assembly (Left) (Replaces: W10275850)
Schematic Location: 27
Y
Axle, Roller, Shaft WheelWPW10515762
Whirlpool Roller Assembly (Right) (Replaces: W10275849)
Schematic Location: 27
Skill level: - Easy fix less than an hour
Y
ScrewW10185612
Whirlpool Screw
Schematic Location: 26
ScrewWP4449745
Whirlpool Screw
Schematic Location: 13
ScrewWPW10273971
Whirlpool Screw
Schematic Location: 18
Y
Screw12992301
Whirlpool Screw
Schematic Location: 1
Screw8533917
Whirlpool Screw (2)
Schematic Location: 11
Screw4391961
Whirlpool Screw (2) (Replaces: 12990515)
Schematic Location: 16
ScrewW10001240
Whirlpool Screw (3)
Schematic Location: 9
Screw67006425
Whirlpool Screw (3) (Replaces: 12990511)
Schematic Location: 12
Y
Screw67006564
Whirlpool Screw (8) (Replaces: 12991302)
Schematic Location: 20
ScrewWPM0238331
Whirlpool Screw (Replaces: 12990204)
Schematic Location: 6
ScrewWP67006908
Whirlpool Screw (Replaces: 12990518)
Schematic Location: 21
Y
ScrewW10709798
Whirlpool Screw (Replaces: 12992101)
Schematic Location: 16
ScrewWP489474
Whirlpool Screw, Adapter (Replaces: 12990501)
Schematic Location: 32
Y
Screw12990302
Whirlpool Screw, Block
Schematic Location: 28
ScrewWP98165
Whirlpool Screw, Bracket (Replaces: 12990521)
Schematic Location: 8
Y
ScrewWP67006380
Whirlpool Screw, Center Hinge (Replaces: 12992201)
Schematic Location: 11
Y
Screw12990702
Whirlpool Screw, Cover
Schematic Location: 25
ScrewWP12992902
Whirlpool Screw, Handle (Shoulder)
Schematic Location: 24
ScrewWP8281196
Whirlpool Screw, Hinge Cover (Replaces: 12992602)
Schematic Location: 9
Skill level: - Fast and very easy fix
Y
ScrewW10216919
Whirlpool Screw, Shoulder
Schematic Location: 9
ScrewWP489349
Whirlpool Screw, Top Hinge (Replaces: 12992403)
Schematic Location: 14
Skill level: - Fast and very easy fix
W10309863
Whirlpool Scroll, Blower
Schematic Location: 3
WPW10287601
Whirlpool Seal, Ice Chute
Schematic Location: 13
Y
WPM0500703
Whirlpool Seal, O Ring
Schematic Location: 28
212643
Whirlpool Sealer, Gum (4 Feet)Y
WP505587
Whirlpool Sealer, Mastic (1 Qt.)Y
DispenserWPW10353552
Whirlpool Separator Assy. (Replaces: W10278973)
Schematic Location: 6
Skill level: - Easy fix less than an hour
Y
ShaftWP12812903WD
Whirlpool Shaft-rack
Schematic Location: 5
Shaft12812904WD
Whirlpool Shaft-rack
Schematic Location: 14
Glass ShelfWP12883507
Whirlpool Shelf, Glide
Schematic Location: 1
Shelf Support Components12885501
Whirlpool Shelf, Mini (Replaces: 12885501N)
Schematic Location: 33
Hinge12999501
Whirlpool Shim, Top Hinge (Left)
Schematic Location: 21
Hinge12999502
Whirlpool Shim, Top Hinge (Right)
Schematic Location: 21
WPW10189184
Whirlpool Shroud
Schematic Location: 31
Y
67006424
Whirlpool Shroud, Evap Fan (Replaces: 12951401)
Schematic Location: 23
Y
Tray, Support , Ice Maker TrayWPW10267863
Whirlpool Slide Tray, Dispenser (Stainless)
Schematic Location: 15
Y
DrawerWPW10120018
Whirlpool Slide, Drawer (2)
Schematic Location: 19
Skill level: - Easy fix less than an hour
Y
SlideWP67005864
Whirlpool Slide, Humidity Control (Replaces: 12530805Sp)
Schematic Location: 17
Y
Tray, Support , Ice Maker TrayW10267861
Whirlpool Slide, Tray Dispenser (Black)
Schematic Location: 15
Tray, Support , Ice Maker TrayW10267860
Whirlpool Slide, Tray Dispenser (White)
Schematic Location: 15
SocketWPW10134764
Whirlpool Socket, Light (Replaces: 12570701V)
Schematic Location: 7
SolenoidWPW10309866
Whirlpool Solenoid
Schematic Location: 12
Y
2316647
Whirlpool Spigot
Schematic Location: 7
Door,Remote Control DoorWPW10197428
Whirlpool Start Device
Schematic Location: 12
Skill level: - Medium fix difficulty
Y
Door,Remote Control DoorWP67007011
Whirlpool Stop, Door (Black) (Replaces: 12968202B)
Schematic Location: 17
Door,Remote Control DoorWPW10191119
Whirlpool Stop, Door (Stainless) (Replaces: 12968202Ap)
Schematic Location: 17
Y
Door,Remote Control Door12968202W
Whirlpool Stop, Door (White)
Schematic Location: 17
W10204187
Whirlpool Strap, Bale
Schematic Location: 11
BoardWPW10226427
Whirlpool Supply, Power
Schematic Location: 36
Y
WP67006010
Whirlpool Support, Glass (Replaces: 12655902Sp)
Schematic Location: 23
HousingWP2195914
Whirlpool Support, Housing (Replaces: 2194712)
Schematic Location: 6
Y
GuideW10499850
Whirlpool Support, Ice Door (Replaces: W10174809)
Schematic Location: 10
WP13062602
Whirlpool Supports, Crisper Frame
Schematic Location: 18
Y
Switch12002646
Whirlpool Switch, Light (2) (Replaces: 12466103)
Schematic Location: 6
Skill level: - Easy fix less than an hour
SwitchWP12466115SP
Whirlpool Switch, Rocker (Replaces: 12466111Sp)
Schematic Location: 16
Skill level: - Easy fix less than an hour
Tape479502
Whirlpool Tape, Vinyl (3/4`` X 108``)
W10325984
Whirlpool Tech Sheet
Schematic Location: 1
Sensor, Thermistor, Thermostat628532
Whirlpool Thermostat (Also Order 542369 Cement)
Schematic Location: 8
WP1117510
Whirlpool Torx Key
Skill level: - Medium fix difficulty
Y
WP67001719
Whirlpool Track, Deli (Replaces: 12531901)
Schematic Location: 31
Y
Tray, Support , Ice Maker TrayW10267870
Whirlpool Tray, Dispenser (Black)
Schematic Location: 14
Tray, Support , Ice Maker TrayWPW10299895
Whirlpool Tray, Dispenser (Stainless)
Schematic Location: 14
Tray, Support , Ice Maker TrayW10267869
Whirlpool Tray, Dispenser (White)
Schematic Location: 14
Tray, Support , Ice Maker TrayWPW10292803
Whirlpool Tray, Drip
Schematic Location: 20
TrimWPW10231345
Whirlpool Trim, Crisper
Schematic Location: 29
Y
Pipe, Tube, Hose, Fitting67006317
Whirlpool Tube W/waterline, Fill-im (Replaces: 12961401)
Schematic Location: 2
Pipe, Tube, Hose, FittingWPW10217747
Whirlpool Tube, Discharge
Schematic Location: 6
Y
Pipe, Tube, Hose, FittingW10619951
Whirlpool Tube, Drain (Replaces: W10210988)
Schematic Location: 31
Y
GuideW10314956
Whirlpool Use & Care Guide
Schematic Location: 1
Valve, Float AssemblyWP978025
Whirlpool Valve, Access (1/4``)Y
Valve, Float Assembly876764
Whirlpool Valve, Access (3/16``)Y
Valve, Float Assembly978027
Whirlpool Valve, Access (3/8``)Y
Valve, Float Assembly978026
Whirlpool Valve, Access (5/16``)Y
Valve, Float Assembly978029
Whirlpool Valve, Access (5/8``)
Valve, Float Assembly978030
Whirlpool Valve, Access(3/4``)
Valve, Float AssemblyWPW10312696
Whirlpool Valve, Dual Water
Schematic Location: 20
Skill level: - Easy fix less than an hour
Y
InletWPW10498990
Whirlpool Valve, Single (Replaces: 2188784)
Schematic Location: 13
Skill level: - Easy fix less than an hour
Y
Washer67006346
Whirlpool Washer (Replaces: 420107A700)
Schematic Location: 16
Y
W10502641
Whirlpool Water Tank & Head Assembly
Schematic Location: 18
Pipe, Tube, Hose, FittingWPW10290356
Whirlpool Waterline, Cabinet (W/nut)
Schematic Location: 24
Pipe, Tube, Hose, FittingWPW10296451
Whirlpool Waterline, Door
Schematic Location: 11
Gear, WheelWPW10123444K
Whirlpool Wheel, Blower (Replaces: W10123444)
Schematic Location: 5
Y
WP63052-2
Whirlpool Yoke, Ice Dispenser (Replaces: 63052A001)
Schematic Location: 17
Y
Whirlpool Corporation is the number one major appliance manufacturer in the world, and includes brands such as Whirlpool, KitchenAid, Maytag, Consul, Brastemp, Amana, Bauknecht, Jenn-Air, Indesit, among others. The Whirlpool Corporation is an American multinational manufacturer and marketer of home appliances, headquartered in Benton Charter Township, Michigan, United States, near Benton Harbor, Michigan. In many Whirlpool appliances, remarkable sense and adapt technology responds to the needs of your clothes, your meals and your foods. By adapting to each situation, intuitive sensors make key refinementsprecisely adjusting water levels for the best clean possible or measuring moisture content for better baking. So your fabrics look newer longer, meals cook more evenly, and foods stay cool and flavorful.
