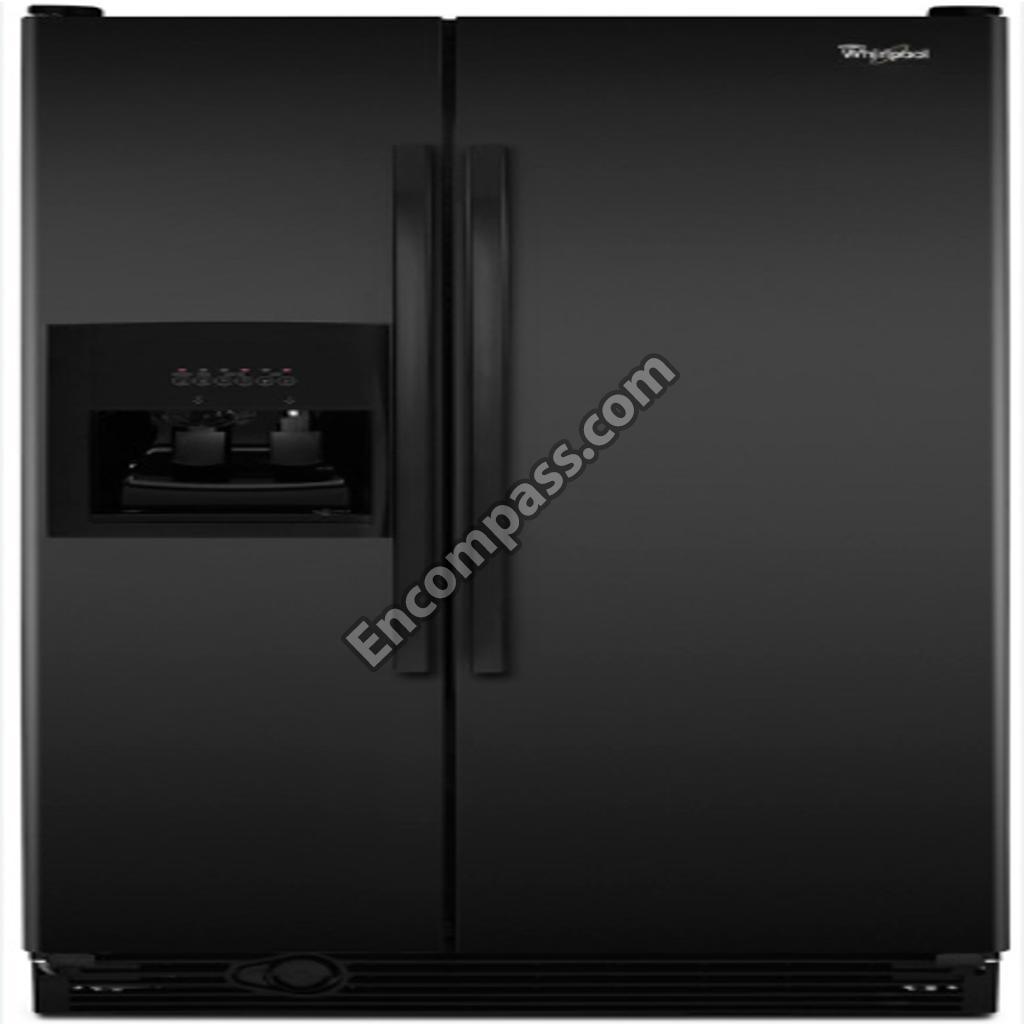

ED5FHEXVB00

Interactive Exploded View

Interactive Exploded View - view assemblies diagrams and click the part you need

Parts Prediction

Tell us what's wrong with your Whirlpool , and we can predict what parts you need to fix it.

Parts List

CategoryPart NumberDescriptionDemand
Cover,Cap2152019
Whirlpool Air Diffuser Cover
W11596045
Whirlpool Arm-contrlY
WPW10152858
Whirlpool Arm-dispsrY
WPW10152859
Whirlpool Arm-dispsrY
WPW10152853
Whirlpool Arm-dispsrY
WPW10152854
Whirlpool Arm-dispsrY
W10152855
Whirlpool Arm-dispsrY
W10152860
Whirlpool Arm-dispsrY
WP627843
Whirlpool Arm-ejectrY
2161306
Whirlpool Arm-pivot
W11342242
Whirlpool Arm-shutY
Ice Maker, Ice Maker AssemblyWP2182124
Whirlpool Arm-stripr
Skill level: - Easy fix less than an hour
Y
KitW10422851
Whirlpool Auger-iceY
W10852691
Whirlpool BaffleY
W10896764
Whirlpool Baffle, Air
Sensor, Thermistor, ThermostatWP2196003
Whirlpool BarrierY
BearingWP1119018
Whirlpool Bearing
Skill level: - Fast and very easy fix
Y
Sensor, Thermistor, ThermostatWP627985
Whirlpool Bimetl-def
Skill level: - Easy fix less than an hour
Y
Sensor, Thermistor, ThermostatWPW10225581
Whirlpool Bimetl-def
Skill level: - Easy fix less than an hour
Y
BinWPW10321304
Whirlpool Bin Control Lever
Skill level: - Fast and very easy fix
Y
BinW11577967
Whirlpool Bin-freezrY
Blade1119009
Whirlpool Blade
BladeW10156818
Whirlpool Blade, Fan
Skill level: - Fast and very easy fix
Y
BladeW10278731
Whirlpool Blade, Rotary A
BladeW10278732
Whirlpool Blade, Rotary B
BladeW10278733
Whirlpool Blade, Rotary C
BladeWP2169142
Whirlpool Blade-fan
Skill level: - Easy fix less than an hour
Y
2157405
Whirlpool Block Blade
ControlWP2179343
Whirlpool Body-cntrlY
Bracket, Flange, BladeW11500948
Whirlpool BracketY
Bracket, Flange, BladeWP2181929
Whirlpool BracketY
Bracket, Flange, BladeWP2304673
Whirlpool BracketY
Bracket, Flange, BladeWP2180226
Whirlpool Bracket
Skill level: - Fast and very easy fix
Y
Bracket, Flange, BladeWP2206629B
Whirlpool BracketY
Bracket, Flange, Blade2256035
Whirlpool Bracket
Bracket, Flange, BladeW10304376
Whirlpool Bracket, MotorY
Knob, Dial, Button2260503W
Whirlpool ButtonY
Knob, Dial, ButtonWP2260503B
Whirlpool ButtonY
Knob, Dial, Button940014
Whirlpool Button-plg
Door,Remote Control DoorWP2182179
Whirlpool Cam-door
Skill level: - Fast and very easy fix
Y
Door,Remote Control DoorWPW10329686
Whirlpool Cam-door
Skill level: - Easy fix less than an hour
Y
LensWP2171706
Whirlpool Camera Lens-lightY
LensWP2317782
Whirlpool Camera Lens-lightY
Cover,CapWP2260518W
Whirlpool Cap-filter
Skill level: - Fast and very easy fix
Y
Cover,CapWP2260518B
Whirlpool Cap-filter
Skill level: - Fast and very easy fix
Y
Filter2260518T
Whirlpool Cap-filter
CapacitorWPW10662129
Whirlpool Capacitor
Skill level: - Easy fix less than an hour
Y
Socket4387478
Whirlpool Capacitor (Service)Y
AdhesiveWP4317852
Whirlpool Cement, Alumilastic (1 1/4 Oz.)Y
W11505385
Whirlpool ChuteY
ClampWP488366
Whirlpool Clamp
Clamp549193
Whirlpool Clamp, Service Cord
ClipWP2315522
Whirlpool ClipY
ClipWP628379
Whirlpool ClipY
ClipWP1115374
Whirlpool Clip
Clip489396
Whirlpool Clip
ClipWP2161324
Whirlpool ClipY
ClipW10683556
Whirlpool Clip
ClipWP2195051
Whirlpool ClipY
ClipWP2194719
Whirlpool Clip
Skill level: - Fast and very easy fix
Y
ClipWP2255411
Whirlpool ClipY
ClipWP1108439
Whirlpool Clip
ClipWP2155013
Whirlpool ClipY
Clip2255199
Whirlpool Clip
Clip2208280
Whirlpool Clip
Clip2155547
Whirlpool Clip
Clip1119021
Whirlpool Clip
Clip1115375
Whirlpool Clip, Wiring
Clip2215823
Whirlpool Clip-air, DuctY
Compressor - Sealed SystemW10139462
Whirlpool Compressor (Includes Items 11, 12, 20, & 31)Y
Condensor2324712
Whirlpool Condenser Assembly
2161307
Whirlpool Connecting Rod (Short)
ConnectorWP2154473
Whirlpool ConnectorY
ContainerWPW10670845
Whirlpool ContainerY
ControlWPW10366605
Whirlpool Control Board
Skill level: - Easy fix less than an hour
Y
8201785
Whirlpool Control Box
W10283958
Whirlpool Corner Filler (Biscuit/bisque)
CouplingWPW10169511
Whirlpool CouplingY
Cover,CapW10508993
Whirlpool Cover
Skill level: - Fast and very easy fix
Y
Cover,CapWP2203408W
Whirlpool CoverY
Cover,CapWP2203408B
Whirlpool CoverY
Cover,CapWP2203407B
Whirlpool Cover
Skill level: - Fast and very easy fix
Y
Cover,CapWP2203407W
Whirlpool CoverY
Cover,Cap2203408T
Whirlpool Cover
Cover,Cap2203407T
Whirlpool Cover
Lens2200096
Whirlpool Cover, Light Camera LensY
Cover,Cap4388356
Whirlpool Cover-evap
Cover,CapWPW10204970B
Whirlpool Cover-frnt
Cover,CapW10153726
Whirlpool Cover-frnt
Cover,CapW10167076
Whirlpool Cover-frnt
Cover,CapWP2188755
Whirlpool Cover-unitY
Cover,CapW10466698
Whirlpool Cover-unitY
Cover,Cap2150331
Whirlpool Cover-wire
PanWP2188656
Whirlpool Crisper Pan
Skill level: - Fast and very easy fix
Y
CupWP628356
Whirlpool Cup-fillY
Deflector & ChuteWP1119017
Whirlpool DeflectorY
Deflector & Chute2179350
Whirlpool Deflector
DiffuserWPW10151374
Whirlpool Diffuser
Skill level: - Easy fix less than an hour
Y
Door,Remote Control DoorL2263771B
Whirlpool Door Assembly Bl
Door,Remote Control DoorL2256786B
Whirlpool Door Assembly Bl
L2263771T
Whirlpool Door Assembly Bt
Door,Remote Control DoorL2256786T
Whirlpool Door Assembly Bt
Door,Remote Control DoorL2263771S
Whirlpool Door Assembly Ss
Door,Remote Control DoorL2256786S
Whirlpool Door Assembly Ss
Door,Remote Control DoorL2263771L
Whirlpool Door Assembly St
Door,Remote Control DoorL2256786L
Whirlpool Door Assembly St
Door,Remote Control DoorL2263771W
Whirlpool Door Assembly Wh
Door,Remote Control DoorL2256786W
Whirlpool Door Assembly Wh
Gasket , Seal2159082
Whirlpool Door Gasket, Magnetic (Service) (Black)
Skill level: - Fast and very easy fix
Y
Gasket , Seal2159083
Whirlpool Door Gasket, Magnetic (Service) (Black)Y
Gasket , Seal2159074
Whirlpool Door Gasket, Magnetic (Service) (Mist Beige)
Skill level: - Fast and very easy fix
Y
Gasket , Seal2159075
Whirlpool Door Gasket, Magnetic (Service) (Mist Beige)
Skill level: - Fast and very easy fix
Y
Hinge8201707
Whirlpool Door HingeY
HingeWP2203771
Whirlpool Door HingeY
HingeWP2203770
Whirlpool Door HingeY
TrimWPW10307490
Whirlpool Door Trim
Skill level: - Fast and very easy fix
Y
TrimWP2309718
Whirlpool Door TrimY
TrimWP2156022
Whirlpool Door TrimY
Door,Remote Control DoorWP2180353
Whirlpool Door-chute
Skill level: - Easy fix less than an hour
Y
Door,Remote Control DoorWP2256101
Whirlpool Door-compY
Door,Remote Control DoorWP2171713
Whirlpool Door-iceY
Pipe, Tube, Hose, FittingW10843121
Whirlpool Drier-tube
Skill level: - Hard fix - you can do It
Y
Dispenser4388736
Whirlpool DrumY
Duct, Vent2182146
Whirlpool DuctY
Tray, Support , Ice Maker TrayW10136387A
Whirlpool Egg-contnr
Skill level: - Fast and very easy fix
Y
HandleW10127816
Whirlpool Endcap (Nickel Alloy)
W10127813
Whirlpool Endcap-hdl
W10127814
Whirlpool Endcap-hdl
Escutcheon2194744
Whirlpool Escutcheon
EvaporatorWP2188823
Whirlpool EvaporatorY
ExtensionWP1108438
Whirlpool ExtensionY
Motor,Ice Maker Motor4389144
Whirlpool Fan Motor
Skill level: - Easy fix less than an hour
Y
WP2182120
Whirlpool Fan-scrollY
Fastener489391
Whirlpool Fastener, Push-on
W11252732
Whirlpool Filler
WPW10283959
Whirlpool FillerY
FilterEDR3RXD1
Whirlpool Filter
Skill level: - Fast and very easy fix
Y
Pipe, Tube, Hose, FittingWP4373559
Whirlpool Fitting
Skill level: - Fast and very easy fix
Y
Pipe, Tube, Hose, Fitting8201537
Whirlpool FittingY
Pipe, Tube, Hose, FittingW11566763
Whirlpool FittingY
Cover,CapWPW10289690
Whirlpool Front CoverY
Cover,CapWPW10242637
Whirlpool Front Cover, Control Box
Cover,CapW10457397
Whirlpool Front Cover, Ice Container
Axle, Roller, Shaft Wheel4386774
Whirlpool Front Roller (2)Y
Gasket , Seal4388500
Whirlpool GasketY
Gasket , SealWP2155789
Whirlpool GasketY
Gasket , SealWP2304241
Whirlpool GasketY
Glass ShelfWPW10276348
Whirlpool Glass Shelf
Skill level: - Fast and very easy fix
Y
Glass ShelfWPW10276354
Whirlpool Glass ShelfY
Glass ShelfW10864399
Whirlpool Glass Shelf
Skill level: - Fast and very easy fix
Y
Glass ShelfWPW10276341
Whirlpool Glass Shelf
Skill level: - Fast and very easy fix
Y
GreaseWP542638
Whirlpool GreaseY
DispenserWP2206670B
Whirlpool GrilleY
DispenserWP2206670W
Whirlpool GrilleY
WP2206670T
Whirlpool GrilleY
WPW10311033
Whirlpool GrilleY
WPW10311032
Whirlpool GrilleY
WPW10283950
Whirlpool GrilleY
WP2176759
Whirlpool GrommetY
WP4387558
Whirlpool GrommetY
876811
Whirlpool Grommet (4) ((Production))
2172906
Whirlpool Grommet, Light Bar
Guard2260517
Whirlpool Guard-fan
GuideW10850503
Whirlpool Guide
GuideWP2180224
Whirlpool Guide-ice
Skill level: - Easy fix less than an hour
Y
HandleW10273556
Whirlpool Handle
HandleW10210943A
Whirlpool Handle
HandleW10210942A
Whirlpool HandleY
HandleW10210944A
Whirlpool Handle
2311639
Whirlpool Harns-dispY
Wire2311632
Whirlpool Harns-wireY
Wire2311733
Whirlpool Harns-wire
Wire2311650
Whirlpool Harns-wire
Wire2311641
Whirlpool Harns-wire
Wire2311637
Whirlpool Harns-wire
Shield2172931
Whirlpool Heat Shield
WP2323198
Whirlpool HeaterY
HousingWPW10185018
Whirlpool Housing
Skill level: - Easy fix less than an hour
HousingWPW10121138
Whirlpool Housing
Skill level: - Easy fix less than an hour
Y
HousingWP2195914
Whirlpool Housing-imY
FilterW10823377
Whirlpool Ice Dor Kt
Skill level: - Easy fix less than an hour
Y
ContainerWPW10312300
Whirlpool Ice-contnr
Skill level: - Fast and very easy fix
Y
Ice Maker, Ice Maker AssemblyWPW10190965
Whirlpool Icemaker
Skill level: - Fast and very easy fix
Y
InletW10408179
Whirlpool Inlet Valve
Skill level: - Easy fix less than an hour
Y
2261037
Whirlpool Instr Shee
Insulation2260519
Whirlpool Insulation
799833
Whirlpool Kit, Evaporator Repair (Aluminum Epoxy)
Lens2171705
Whirlpool Lens-light
LightWP22002263
Whirlpool Light Bulb
Skill level: - Fast and very easy fix
Y
LightW11679940
Whirlpool Light BulbY
Light8009
Whirlpool Light Bulb
Skill level: - Fast and very easy fix
Y
Light2179921
Whirlpool Light-bar
Light2179920
Whirlpool Light-bar
W10158909
Whirlpool Litservic
Louver8201651
Whirlpool Louver-cabY
628370
Whirlpool Modular Icemaker Service Sheet
Motor,Ice Maker Motor8201515
Whirlpool Module Assembly (Includes Items 21 & 22)Y
Ice Maker, Ice Maker AssemblyWPW10190929
Whirlpool Mold-ice
Skill level: - Easy fix less than an hour
Y
Motor,Ice Maker MotorWP2188242
Whirlpool MotorY
Motor,Ice Maker MotorWP2188874
Whirlpool Motor-cond
Skill level: - Easy fix less than an hour
Y
PlateWP2213265
Whirlpool NameplateY
799344
Whirlpool Paint
786032
Whirlpool Paint, Bulk (1 Qt.) (Black (Uncut))
8171358
Whirlpool Paint, Bulk (1 Qt.) (Graphite`)
285006
Whirlpool Paint, Pressurized Spray (12 Oz. Black)Y
72032
Whirlpool Paint, Touch-up (1/2Oz. Black)Y
Washer72017
Whirlpool Paint, Touch-up (1/2Oz. White)
Skill level: - Fast and very easy fix
Y
WP80051
Whirlpool Paint, Touch-up (1/2Oz.) (Graphite)Y
PanWP2188664
Whirlpool Pan-meat
Skill level: - Fast and very easy fix
Y
PanWP2309517
Whirlpool Pan-snackY
PinWP2196195
Whirlpool Pin-doorY
Auto Primer350942
Whirlpool PrimerY
Rail2305374
Whirlpool Rail-unit
WP2256126
Whirlpool ReservoirY
WP2155590
Whirlpool RetainerY
WP2256085
Whirlpool Retainer
RingWP489236
Whirlpool Ring-eY
2161308
Whirlpool Rod
Pin489229
Whirlpool Roll Pin
Axle, Roller, Shaft WheelWPW10250570
Whirlpool Roller-cabY
WP2161231
Whirlpool Scoop-airY
ScrewWP488163
Whirlpool ScrewY
ScrewWPW10141625
Whirlpool Screw
Screw627068
Whirlpool Screw
Screw489392
Whirlpool Screw
ScrewWP8533993
Whirlpool Screw
ScrewWP3400906
Whirlpool ScrewY
ScrewWP3196557
Whirlpool ScrewY
ScrewWP3400012
Whirlpool ScrewY
ScrewWPW10288153
Whirlpool ScrewY
ScrewWP8533988
Whirlpool ScrewY
ScrewWP488787
Whirlpool ScrewY
ScrewWP489478
Whirlpool ScrewY
ScrewWP489399
Whirlpool ScrewY
ScrewWP3400806
Whirlpool ScrewY
ScrewWP3-24004-109
Whirlpool ScrewY
Screw798639
Whirlpool Screw
ScrewWP489483
Whirlpool Screw
Skill level: - Fast and very easy fix
Y
ScrewWPW10141645
Whirlpool ScrewY
ScrewWP8281227
Whirlpool ScrewY
ScrewWP489464
Whirlpool ScrewY
ScrewWP488488
Whirlpool Screw
ScrewW10856122
Whirlpool ScrewY
ScrewW10853301
Whirlpool Screw
ScrewWP489497
Whirlpool Screw
Skill level: - Fast and very easy fix
Y
ScrewWP489128
Whirlpool ScrewY
ScrewWP489500
Whirlpool ScrewY
ScrewWP489427
Whirlpool ScrewY
ScrewW10850698
Whirlpool Screw
ScrewW10759522
Whirlpool ScrewY
ScrewWP681249
Whirlpool ScrewY
ScrewW11544659
Whirlpool Screw
Screw8533917
Whirlpool Screw
Screw489340
Whirlpool Screw (5)
ScrewW10142289
Whirlpool Screw 8-18 X 5/8
Screw4389654
Whirlpool Screw No.8 X 3/8 Hex
Screw2006254
Whirlpool Screw, 6-19 X .250
Screw718257
Whirlpool Screw, 8-18 X 1.38
WP503695
Whirlpool SealerY
WP505587
Whirlpool SealerY
212643
Whirlpool Sealer-gumY
Glass ShelfWP2194297K
Whirlpool Shelf
WireWPW10318946
Whirlpool Shelf, Wire
Glass ShelfWPW10318947
Whirlpool Shelf-wire
Skill level: - Fast and very easy fix
Y
Glass ShelfWPW10318948
Whirlpool Shelf-wireY
Shield2217194
Whirlpool Shield
WP2209697
Whirlpool ShimY
SleeveW11661094
Whirlpool Sleeve
SlideWP2179342
Whirlpool SlideY
Slide2181741
Whirlpool Slide
Slide2182757
Whirlpool Slide Meat Pan Control
Slide2161466
Whirlpool Slide, Thermostat
Socket2180200
Whirlpool SocketY
SolenoidWP2152713
Whirlpool Solenoid
Skill level: - Easy fix less than an hour
Y
SpacerWP625834
Whirlpool Spacer
SpacerWP1119007
Whirlpool SpacerY
SpacerWP1119005
Whirlpool SpacerY
350930
Whirlpool SprayY
8171357
Whirlpool SprayY
SpringWPW10224328
Whirlpool SpringY
Spring1119020
Whirlpool SpringY
Washer489203
Whirlpool Spring, Washer
Compressor - Sealed SystemWPW10189190
Whirlpool Start-dev
Skill level: - Medium fix difficulty
Y
WP2304884
Whirlpool Start-devY
Shelf Support ComponentsWP2196207
Whirlpool Stud-shelf
Glass Shelf4388405
Whirlpool Stud-shelfY
Glass ShelfWP2196483
Whirlpool Stud-shelf
Skill level: - Fast and very easy fix
Y
Glass ShelfW11223328
Whirlpool Stud-shelf
Skill level: - Fast and very easy fix
Y
4388358
Whirlpool Support Kit (Contains Right And Left)Y
SwitchWP2149705
Whirlpool Switch
Skill level: - Easy fix less than an hour
Y
SwitchW11457217
Whirlpool SwitchY
WP2162361
Whirlpool Swtch-micrY
TapeW11238399
Whirlpool Tape
Terminal833938
Whirlpool TerminalY
Sensor, Thermistor, ThermostatWP2315562
Whirlpool Thermostat
Skill level: - Easy fix less than an hour
Y
WP2182181
Whirlpool ThimbleY
WireWPW10339879
Whirlpool Tie-wireY
WP1117510
Whirlpool Torx Screw Wrench, Torx Key
Skill level: - Medium fix difficulty
Y
W10845583
Whirlpool TrackY
W10845585
Whirlpool Track
PanWPW10614158
Whirlpool Tray-evap
Skill level: - Fast and very easy fix
Y
TrimWP2179243
Whirlpool Trim-panY
TrimWP2179234
Whirlpool Trim-panY
Pipe, Tube, Hose, FittingWP2205765
Whirlpool TubeY
Pipe, Tube, Hose, Fitting2261599
Whirlpool Tube
Frame2304904
Whirlpool Unit Mounting Frame
Guide2309541
Whirlpool Use & Care Guide
Valve, Float AssemblyWP978025
Whirlpool ValveY
Valve, Float Assembly876764
Whirlpool ValveY
Valve, Float Assembly978026
Whirlpool ValveY
Valve, Float Assembly978027
Whirlpool ValveY
Valve, Float Assembly978029
Whirlpool ValveY
Valve, Float Assembly978030
Whirlpool ValveY
Valve, Float Assembly978028
Whirlpool Valve, Access (1/2``)
WasherWP489235
Whirlpool WasherY
Washer489234
Whirlpool Washer, Plain
Pipe, Tube, Hose, FittingW10823511
Whirlpool Water TubeY
Pipe, Tube, Hose, FittingWPW10350006
Whirlpool Water Tube
Skill level: - Easy fix less than an hour
Y
Pipe, Tube, Hose, FittingWP2304697
Whirlpool Water TubeY
2175513
Whirlpool Window
WireW10853646
Whirlpool Wire Harness
WireW11234406
Whirlpool Wire HarnessY

About Whirlpool

Whirlpool Corporation is the number one major appliance manufacturer in the world, and includes brands such as Whirlpool, KitchenAid, Maytag, Consul, Brastemp, Amana, Bauknecht, Jenn-Air, Indesit, among others. The Whirlpool Corporation is an American multinational manufacturer and marketer of home appliances, headquartered in Benton Charter Township, Michigan, United States, near Benton Harbor, Michigan. In many Whirlpool appliances, remarkable sense and adapt technology responds to the needs of your clothes, your meals and your foods. By adapting to each situation, intuitive sensors make key refinementsprecisely adjusting water levels for the best clean possible or measuring moisture content for better baking. So your fabrics look newer longer, meals cook more evenly, and foods stay cool and flavorful.
