JB690DIF1WW GE Replacement Parts

Manufacturer

Model Number
JB690DIF1WW

Description
Free-standing Electric Range

Interactive Exploded View

Parts List

Category	Part Number	Description	Demand	Availability
	PM10X310	GE 28 Cerama Br	Y	In Stock In stock 21.95
	WB1K5200	GE 340531 Schematic Location: 2103	Y	In Stock In stock 13.95
	WB63T10176	GE Back Main Schematic Location: 203		Ships in 15 days 62.95
Base	WB63X28540	GE Base Rivet Asm		Ships in 15 days 104.95
Base	WB63X25881	GE Base Rivet Asm		Ships in 15 days 133.95
Latch	WB14X41386	GE Black Latch And Handle	Y	In Stock In stock 54.95
	WB63X20923	GE Body Ovn Weld Asm Bk Schematic Location: 201		Ships in 15 days 149.95
	WB02T10463	GE Brace Chassis Radiant Rt Schematic Location: 2003	Y	In Stock In stock 21.95
Bracket, Flange, Blade	WB02T10578	GE Bracket Antitip Asm Schematic Location: 268	Y	In Stock In stock 38.95
Bracket, Flange, Blade	WB02T10194	GE Bracket Capacitor Schematic Location: 20		Ships in 15 days 13.95
Bracket, Flange, Blade	WB34X20080	GE Bracket Control Schematic Location: 14		In Stock In stock 13.95
Bracket, Flange, Blade	WB02T10471	GE Bracket Conv Fan Schematic Location: 534		Ships in 15 days 24.95
Bracket, Flange, Blade	WB34X42027	GE Bracket Ovn Hdl Vnt Trm Schematic Location: 2023	Y	Ships in 20 days 21.95
Handle	WB34X42670	GE Bracket Ovn Hdl Vnt Trm	Y	Ships in 15 days 12.95
Bracket, Flange, Blade	WB02X20940	GE Bracket Radiant Element Schematic Location: 62	Y	In Stock In stock 13.95
Capacitor	WB27T10662	GE Capacitor Motor Schematic Location: 578	Y	Ships in 15 days 13.95
Clip	WB02X45146	GE Clip Cable Schematic Location: 962	Y	In Stock In stock 12.95
Oven, Drip, Pan	WB02T10118	GE Clip Seam Oven Body Schematic Location: 83		Ships in 15 days 13.95
Switch	WB24T10029	GE Control Infinite Switch Schematic Location: 22	Y	In Stock In stock 47.95
Oven, Drip, Pan	WB27X20078	GE Control Oven To9 (Elec) Schematic Location: 16	Y	No
Cover,Cap	WB2K5365	GE Cover Schematic Location: 2133		Ships in 15 days 30.95
Cover,Cap	WB34T10128	GE Cover Back Schematic Location: 217	Y	In Stock In stock 55.95
Cover,Cap	WB02T10532	GE Cover Control Schematic Location: 15		Ships in 15 days 34.95
Cover,Cap	WB34X20082	GE Cover Fan Convx Bk Schematic Location: 514		In Stock In stock 62.95
Cover,Cap	WB34T10011	GE Cover Receptacle Schematic Location: 219		No
Door,Remote Control Door	WB01T10026	GE Door Pad Schematic Location: 132	Y	In Stock In stock 13.95
Drawer	WB55T10178	GE Drawer Body Asm Mech Schematic Location: 204	Y	Ships in 15 days 120.95
Drawer	WB48T10013	GE Drawer Support Frt Schematic Location: 293	Y	In Stock In stock 13.95
	WB30T10130	GE Element Haliant 12 In Schematic Location: 58	Y	In Stock In stock 153.95
	WB30T10145	GE Element Radiant 5.5 In Schematic Location: 56	Y	In Stock In stock 101.95
	WB30X20871	GE Element Radiant 6 Warmer Schematic Location: 53	Y	In Stock In stock 93.95
	WB30T10133	GE Element Radiant 9 Dual Schematic Location: 57	Y	In Stock In stock 107.95
	WB34T10125	GE Enclosure Rangetop Schematic Location: 66		Ships in 15 days 29.95
Plate	WB27X20083	GE Faceplate Graphics Wh Schematic Location: 18		Ships in 15 days 27.95
Door,Remote Control Door	WB56T10290	GE Frame Door Side (Wh) Schematic Location: 140	Y	In Stock In stock 29.95
Frame	WB63X20115	GE Frame Front 5.0 (Black) Schematic Location: 202		Ships in 15 days 66.95
Gasket , Seal	WB01T10079	GE Gasket Conv Fan Schematic Location: 2053	Y	In Stock In stock 13.95
Oven, Drip, Pan	WB04T10086	GE Gasket Oven Schematic Location: 111	Y	In Stock In stock 47.95
Glass	WB56T10356	GE Glass Ovn Dr Otr Wh Schematic Location: 121	Y	In Stock In stock 76.95
Handle	WB15T10214	GE Handle Lewh Schematic Location: 136	Y	In Stock In stock 97.95
Wire	WB18X20001	GE Harness Wire Infinite Schematic Location: 600		Ships in 15 days 45.95
Wire	WB18X20008	GE Harness Wire Maintop Schematic Location: 605		Ships in 28 days 70.95
Hinge	WB10T10071	GE Hinge Door Schematic Location: 281		No
Hinge	WB10T10068	GE Hinge Receiver Schematic Location: 277		Ships in 15 days 45.95
Blade	WB02T10289	GE Hub Blade Asm Schematic Location: 43	Y	In Stock In stock 33.95
Insulation	WB35T10210	GE Insulation Conv Schematic Location: 230		Ships in 10 days 36.95
Door,Remote Control Door	WB35T10077	GE Insulation Door Schematic Location: 101	Y	In Stock In stock 13.95
Door,Remote Control Door	WB35T10114	GE Insulation Door Schematic Location: 102	Y	In Stock In stock 13.95
Door,Remote Control Door	WB35T10255	GE Insulation Door Schematic Location: 103	Y	Ships in 10 days 47.95
Insulation	WB35X21424	GE Insulation Ovn Bck Btm Schematic Location: 232		Ships in 15 days 55.95
Insulation	WB35X21443	GE Insulation Ovn Wrpr Schematic Location: 231		Ships in 15 days 56.95

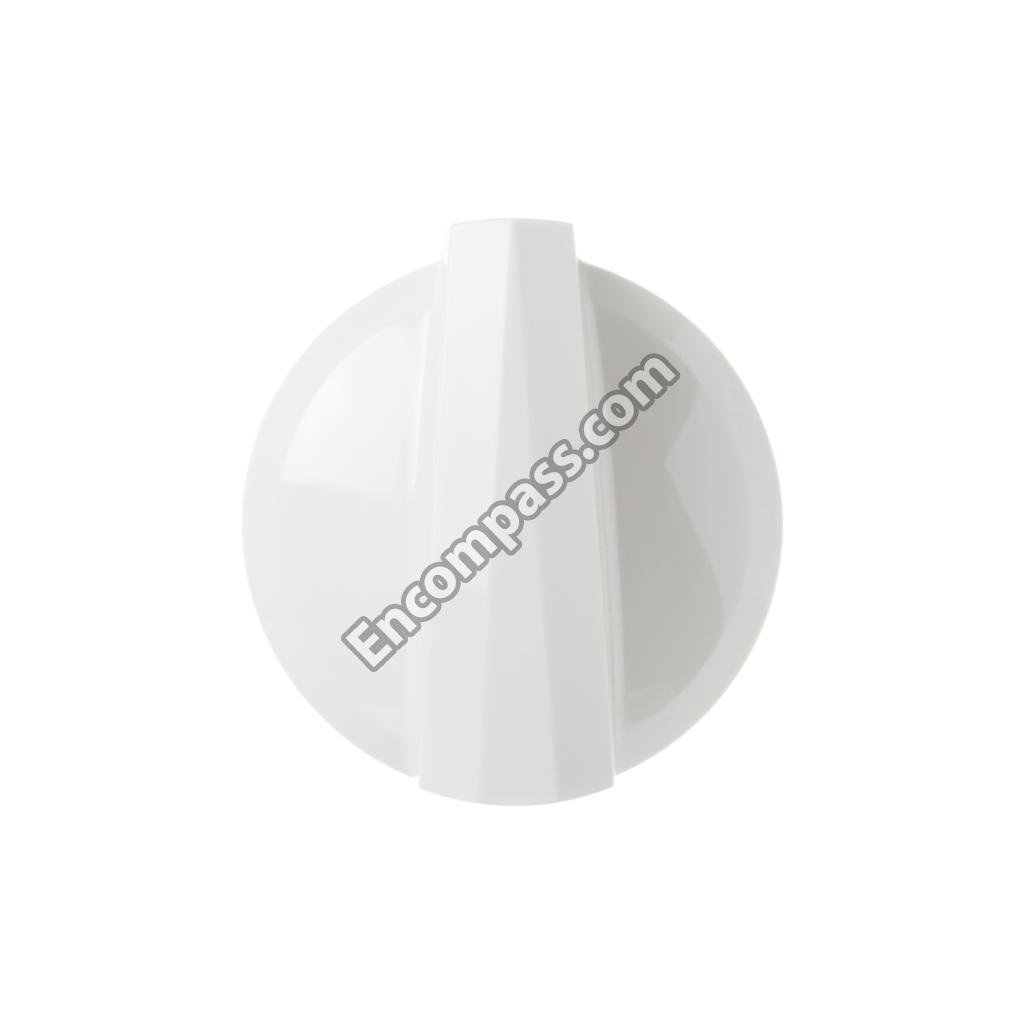

Knob, Dial, Button	WB03X21412	GE Knob Infinite Schematic Location: 28		No
Knob, Dial, Button	WB03T10344	GE Knob Infinite Schematic Location: 29	Y	In Stock In stock 16.95
Lamp	WB25T10097	GE Lamp Halogen Asm Schematic Location: 258	Y	In Stock In stock 42.95
Lamp	WB08T10045	GE Lamp Halogen G9 Schematic Location: 257	Y	In Stock In stock 18.95
Handle	WB14T10093	GE Latch And Handle Asm	Y	In Stock In stock 76.95
Leg, Foot, Caster	WB02X10521	GE Leg Leveler Schematic Location: 296	Y	In Stock In stock 21.95
Lens	WB25T10103	GE Lens Schematic Location: 34	Y	Ships in 10 days 13.95
Indicator	WB27T10668	GE Light Indicator Schematic Location: 32	Y	In Stock In stock 18.95
Indicator	WB27T10627	GE Light Indicator Pilot Schematic Location: 33	Y	In Stock In stock 13.95
Indicator	WB25X20005	GE Light Indicator Pilot Schematic Location: 35	Y	In Stock In stock 13.95
Door,Remote Control Door	WB55T10203	GE Liner Oven Door Asm Bk Schematic Location: 112	Y	Ships in 15 days 95.95
	WB02T10026	GE Maintop Strike Schematic Location: 929	Y	In Stock In stock 13.95
Pump, Motor	WB26T10037	GE Motor Psc Conv Schematic Location: 511	Y	Ships in 15 days 124.95
Terminal	WB17T10021	GE Mount Terminal Block Schematic Location: 269	Y	Ships in 15 days 30.95
Nut	WB02T10017	GE Nut Schematic Location: 977	Y	Ships in 15 days 16.95
Lens	WB25T10013	GE Ov Lamp Lens Schematic Location: 259		No
Oven, Drip, Pan	WB48T10063	GE Oven Rack Schematic Location: 241	Y	In Stock In stock 49.95
Oven, Drip, Pan	WB24T10043	GE Oven Rocker Switch Schematic Location: 25	Y	Ships in 15 days 35.95
	WB56T10105	GE Pack Window Asm	Y	In Stock In stock 126.95
	WB56X22160	GE Pack Window Assembly Schematic Location: 338	Y	In Stock In stock 288.95
	WB56X43435	GE Panel Drawer (White) Schematic Location: 222	Y	In Stock In stock 44.95
Panel	WB56X28884	GE Panel Side (Wh) Schematic Location: 2033	Y	In Stock In stock 66.95
Hinge	WB10T10116	GE Pin Rangetop Hinge Schematic Location: 91		Ships in 15 days 13.95
Plate	WB36T11207	GE Plate End Lt Schematic Location: 2001		Ships in 15 days 21.95
Plate	WB36T11206	GE Plate End Rt Schematic Location: 2000		Ships in 15 days 21.95
	31-10781	GE Pm Install Instructions		Ships in 15 days 5.95
Bracket, Flange, Blade	WB02X20902	GE Range Radiant Element Bracket Schematic Location: 61	Y	Ships in 15 days 13.95
	WB34X26004	GE Range Radiant Left Chassis Brace Schematic Location: 2013	Y	In Stock In stock 18.95
Switch	WB24X21736	GE Range Rotary Switch Schematic Location: 2063		No
Glass	WB62X25977	GE Rangetop Glass Assembly (White) Schematic Location: 2073	Y	In Stock In stock 761.95
Pan	WB02T10509	GE Refector Pan For Bake Element Schematic Location: 489	Y	Ships in 15 days 60.95
	WB56T10178	GE Retainer Ovn Dr Insln Schematic Location: 113	Y	In Stock In stock 82.95
	WB01T10103	GE Scr 10-16 Ab Hxw .532 Schematic Location: 696	Y	In Stock In stock 13.95
	WB01T10067	GE Scr 10-16 Pl Pnt 2.5 S Schematic Location: 1003	Y	In Stock In stock 13.95
	WB02T10324	GE Scr 6-20 Gxb Ihxw 3/8 Ni Schematic Location: 847	Y	In Stock In stock 13.95
	WB01T10126	GE Scr 8-18 Ab Hxw 1/2 S Schematic Location: 1000		Ships in 15 days 12.95
	WB1X5904	GE Scr 8-18 Ba	Y	In Stock In stock 13.95
	WR01X10602	GE Scr 8-32 Ab Ihws 3/8 S Schematic Location: 755		In Stock In stock 13.95
Screw	WH2X930	GE Screw Schematic Location: 875	Y	In Stock In stock 13.95
Screw	WD2X432	GE Screw Schematic Location: 715		Ships in 15 days 13.95
Screw	WB1M1	GE Screw Schematic Location: 2113	Y	In Stock In stock 13.95
Screw	WB01T10008	GE Screw 10-32 Tr T Schematic Location: 1005	Y	In Stock In stock 13.95
Screw	WB01T10017	GE Screw 8-18 Ab Ihw 3/8 S Ns Schematic Location: 1002	Y	In Stock In stock 13.95
Screw	WB01T10053	GE Screw 8-32 Tpt Flr 270 Schematic Location: 1006		Ships in 15 days 13.95
Screw	WB01T10047	GE Screw 8-32 X 625 M Hxw S Schematic Location: 684		Ships in 15 days 13.95
Screw	WH2X941D	GE Screw-pkg 12		No
Sensor, Thermistor, Thermostat	WB21X22134	GE Sensor Assembly Schematic Location: 253	Y	In Stock In stock 29.95
Shield	WB44X20882	GE Shield Broil Asm Schematic Location: 252	Y	In Stock In stock 91.95
Shield	WB02X20711	GE Shield Heat Bkgd Schematic Location: 3		Ships in 15 days 21.95
Panel	WB02T10034	GE Side Panel Support Schematic Location: 272	Y	Ships in 15 days 13.95
	WB49T10007	GE Side Reflector Schematic Location: 472		Ships in 15 days 34.95
Spacer	WB02T10175	GE Spacer Schematic Location: 919		No
Spring	WB09X40389	GE Spring Radiant Element Schematic Location: 60	Y	In Stock In stock 13.95
	WB02X33180	GE Support Rear	Y	In Stock In stock 13.95
Switch	WB24T10153	GE Switch Infinite Control Schematic Location: 24	Y	In Stock In stock 83.95
Switch	WB24T10147	GE Switch Spdt High Amp Schematic Location: 261	Y	In Stock In stock 26.95
Terminal	WB17T10011	GE Terminal Block Asm Schematic Location: 254	Y	In Stock In stock 55.95
Trim	WB36X20084	GE Trim Cntrl Asm Schematic Location: 1		Ships in 15 days 49.95
Trim	WB07X32929	GE Trim Dr Btm Chnl	Y	No
Trim	WB07T10516	GE Trim Frt Frm (Bk) Schematic Location: 264	Y	Ships in 15 days 31.95
Latch	WB7X7175	GE Trim Latch		Ships in 15 days 15.95
Latch	WB07X7175	GE Trim Latch Schematic Location: 255		No
Door,Remote Control Door	WB07X27236	GE Trim Vent Door Schematic Location: 2043	Y	In Stock In stock 125.95
Pipe, Tube, Hose, Fitting	WB28T10217	GE Tube Vnt Radiant Schematic Location: 283		In Stock In stock 55.95
	WB44T10104	GE Unit Asm Schematic Location: 251	Y	In Stock In stock 80.95
Pipe, Tube, Hose, Fitting	WB38X33648	GE Vent Tube Schematic Location: 2123	Y	Ships in 15 days 24.95
Vent	WB38T10012	GE Vent Tube Assembly		No
Insulation	WB35T10017	GE Vent Tube Insulation Schematic Location: 229		No 13.95
Washer	WB02X32440	GE Washer Contoured Schematic Location: 2083	Y	In Stock In stock 13.95
Washer	WB1X119D	GE Washr-pkg 12	Y	In Stock In stock 21.95
Drawer	WB48T10068	GE Wedge Drawer Schematic Location: 242	Y	In Stock In stock 35.95
