Manufacturer
Whirlpool Replacement Parts

Model Number
GI6FARXXY04

Description

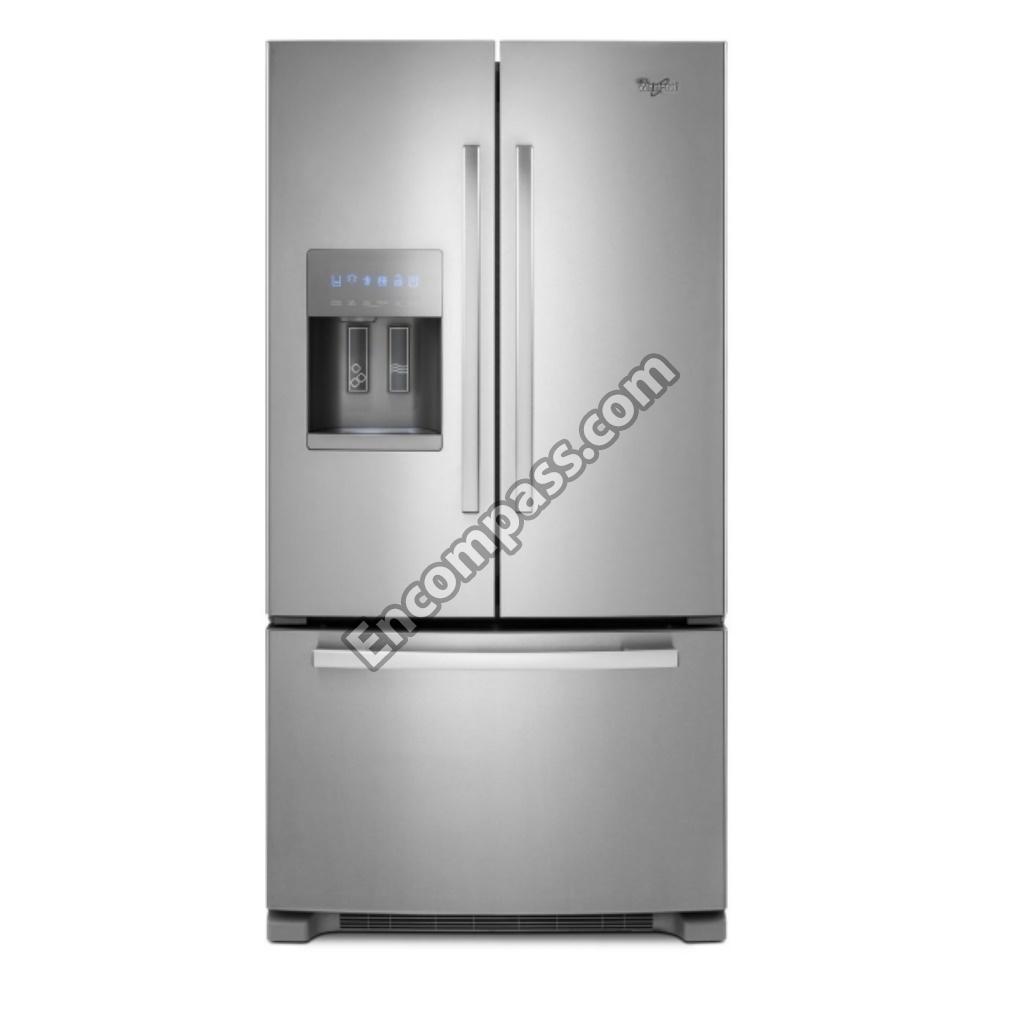

26 Cu. Ft. French Door Bottom Mount Refrigerator

Interactive Exploded View

Interactive Exploded View - view assemblies diagrams and click the part you need

Parts List

CategoryPart NumberDescriptionDemand
799340
Whirlpool (12 Oz. Spray Can) (Enamel,black (1 Qt. Uncut))
Bracket, Flange, BladeWPW10284682
Whirlpool Adapter (Left Hand)Y
Bracket, Flange, BladeWPW10284683
Whirlpool Adapter (Right Hand)
Schematic Location: 21
Y
Ice Maker, Ice Maker AssemblyWPW10378254
Whirlpool Arm,shutoff
Schematic Location: 2
Skill level: - Easy fix less than an hour
Y
ContainerWPW10562191
Whirlpool Assembly,ice Bin
Schematic Location: 1
WPW10377151
Whirlpool Assembly,icemaker
Schematic Location: 100
WPW10312691
Whirlpool Assembly,impinger
Schematic Location: 14
Y
IndicatorW10853390
Whirlpool Assembly,led
Schematic Location: 17
Skill level: - Easy fix less than an hour
Pump, MotorWPW10377147
Whirlpool Assembly,module Andmotor
Schematic Location: 17
WPW10300025
Whirlpool Assembly,mold And Heater
Schematic Location: 1
Y
Axle, Roller, Shaft WheelWPW10515763
Whirlpool Assembly,roller (Left Hand)
Schematic Location: 27
Y
Axle, Roller, Shaft WheelWPW10515762
Whirlpool Assembly,roller (Right Hand)
Skill level: - Easy fix less than an hour
Y
DispenserWPW10353552
Whirlpool Assembly,seperator
Schematic Location: 6
Skill level: - Easy fix less than an hour
Y
SolenoidWPW10309866
Whirlpool Assembly,solenoid
Schematic Location: 12
Y
2316647
Whirlpool Assembly,spigot Body
Schematic Location: 7
Axle, Roller, Shaft Wheel67006434
Whirlpool Axle,roller
Schematic Location: 30
Y
Bag606755
Whirlpool Bag
Cooking PlateW10480111
Whirlpool Basepan
Schematic Location: 3
BasketWPW10348249
Whirlpool Basket,upper
Schematic Location: 6
BinWPW10293682
Whirlpool Bin,lower
Schematic Location: 7
Y
BladeWP67006337
Whirlpool Blade,fan
Schematic Location: 24
Y
BladeWP12825803
Whirlpool Blade,fan
Schematic Location: 2
Skill level: - Easy fix less than an hour
Y
BoardWPW10285199
Whirlpool Board,hv Control
Schematic Location: 35
Y
W10285271
Whirlpool Box,hv Control
Schematic Location: 16
WP12642303WD
Whirlpool Brace,crisper Cover
Schematic Location: 11
Y
WP12227305WD
Whirlpool Brace,pantry
Schematic Location: 34
Y
Bracket, Flange, BladeWPW10330994
Whirlpool Bracket,door (Left Hand)
Schematic Location: 13
Y
Bracket, Flange, BladeWPW10330995
Whirlpool Bracket,door (Right Hand)Y
Bracket, Flange, Blade67006325
Whirlpool Bracket,filter Base
Schematic Location: 15
Y
Bracket, Flange, BladeW10174827
Whirlpool Bracket,ice Door
Schematic Location: 8
Y
Bracket, Flange, BladeW10346971
Whirlpool Bracket,solenoid
Schematic Location: 15
Y
W10502641
Whirlpool Bracket,water Tank & Valve
Schematic Location: 18
Bracket, Flange, BladeW10365768
Whirlpool Bracket,water Tank And Valve
Schematic Location: 17
Leg, Foot, CasterWPW10141622
Whirlpool Brake,roller
Schematic Location: 34
Y
BinWPW10224961
Whirlpool Bucket,gallon
Schematic Location: 5
Y
BinWPW10212139
Whirlpool Bucket,small
Schematic Location: 4
Skill level: - Fast and very easy fix
Y
BinWPW10323808
Whirlpool Bucket,upper
Schematic Location: 3
Y
Light8009
Whirlpool Bulb,light
Schematic Location: 8
Skill level: - Fast and very easy fix
Y
CapacitorWPW10662129
Whirlpool Capacitor
Schematic Location: 5
Skill level: - Easy fix less than an hour
Y
FilterWP12664501
Whirlpool Cartridge,bypass
Schematic Location: 19
Skill level: - Fast and very easy fix
AdhesiveWP4317852
Whirlpool Cement,alumilastic (1 1/4 Oz.)Y
ClampM0108107
Whirlpool Clamp,tube
Schematic Location: 8
ClipW10174818
Whirlpool Clip Motor Coupling
Schematic Location: 13
12996601
Whirlpool Clip,bushing
Schematic Location: 19
Y
ClampW10281329
Whirlpool Clip,drier
Schematic Location: 19
ClipW10165970
Whirlpool Clip,fan Motor
Schematic Location: 6
Y
Clip67006338
Whirlpool Clip,fan Motor
Schematic Location: 15
Clip10428101
Whirlpool Clip,heater
Schematic Location: 25
ClipWP628379
Whirlpool Clip,thermal Fuse
Schematic Location: 19
Y
WP67003639
Whirlpool Closure,door (Black)Y
WP12028505AP
Whirlpool Closure,door (Grey)
Schematic Location: 16
Skill level: - Fast and very easy fix
Y
WP67003638
Whirlpool Closure,door (White)Y
Compressor - Sealed SystemW10233960
Whirlpool Compressor
Schematic Location: 28
Y
CondensorWPW10346415
Whirlpool Condenser
Schematic Location: 18
Y
ConnectorWPW10334458
Whirlpool Connector,water Tube
Schematic Location: 34
Y
BoardWPW10226427
Whirlpool Control,electronic (Power Supply)
Schematic Location: 36
Y
WP503695
Whirlpool Cork,sealerY
Coupling10244904
Whirlpool Coupling
Schematic Location: NI
Cover,CapW10460383
Whirlpool Cover
Schematic Location: 12
Cover,Cap12961602
Whirlpool Cover,control Box
Schematic Location: 7
Cover,Cap67003485
Whirlpool Cover,corner (Black)Y
Cover,Cap12587703W
Whirlpool Cover,corner (White)
Schematic Location: 17
Cover,CapW10308421
Whirlpool Cover,evaporator
Schematic Location: 11
Cover,Cap12981401B
Whirlpool Cover,fill Tube (Black)
Schematic Location: 6
Cover,CapW10191141
Whirlpool Cover,fill Tube (Grey)Y
Cover,Cap12981401W
Whirlpool Cover,fill Tube (White)
Cover,CapWP67006331
Whirlpool Cover,filter
Schematic Location: 12
Y
Cover,CapW10337647
Whirlpool Cover,left Hinge (Black)Y
Cover,CapWPW10337648
Whirlpool Cover,left Hinge (Grey)
Schematic Location: 13
Y
Cover,CapWPW10337634
Whirlpool Cover,left Hinge (White)Y
Cover,Cap67006318
Whirlpool Cover,light
Schematic Location: 9
Cover,Cap67006329
Whirlpool Cover,lower Water Tank
Schematic Location: 13
Cover,CapWP67005956
Whirlpool Cover,right Hinge (Black)Y
Cover,CapWPW10191117
Whirlpool Cover,right Hinge (Grey)Y
Cover,Cap67005958
Whirlpool Cover,right Hinge (White)
Schematic Location: 5
Cover,CapWP67003924
Whirlpool Cover,thermistor
Schematic Location: 31
Y
Cover,CapW10211854
Whirlpool Cover,unit
Schematic Location: 30
Cover,Cap67006330
Whirlpool Cover,upper Water Tank
Schematic Location: 11
Cover,CapW10208592
Whirlpool Cover,valve
Schematic Location: 37
Cover,CapWPW10309869
Whirlpool Cover,wiring
Schematic Location: 21
Y
CupW10377998
Whirlpool Cup,fill
Schematic Location: 3
Y
4392899
Whirlpool Customer Touch-up Material (Enamel,bisque (.6 Oz. Bottle))
Schematic Location: NI
Skill level: - Fast and very easy fix
Y
4392901
Whirlpool Customer Touch-up Material (Enamel,bisque (12 Oz. Spray Can))Y
12963002SP
Whirlpool Dam (Left Hand)
Schematic Location: 23
12963102SP
Whirlpool Dam (Right Hand)
ControlWPW10196393
Whirlpool Damper,control
Schematic Location: 11
Skill level: - Easy fix less than an hour
Y
WPW10194431
Whirlpool Device,combination Start (Start Relay And Overload)
Schematic Location: 12
Y
ShieldW10233560
Whirlpool Dispenser,false Wall (Black)
ShieldW10215699
Whirlpool Dispenser,false Wall (White)
WPW10309864
Whirlpool Divider,ice Box
Schematic Location: 8
Y
W10146439
Whirlpool Divider,upper Basket
Schematic Location: 5
Door,Remote Control Door13107303BQ
Whirlpool Door,left (Black)
Door,Remote Control Door13107305SQ
Whirlpool Door,left (Stainless)
Door,Remote Control Door13107303WQ
Whirlpool Door,left (White)
Schematic Location: 1
Door,Remote Control Door13107304BQ
Whirlpool Door,right (Black)
Schematic Location: 23
Door,Remote Control DoorWPW10317279
Whirlpool Door-ice
Schematic Location: 11
Compressor - Sealed SystemWPW10143759
Whirlpool Drier
Schematic Location: 27
Skill level: - Hard fix - you can do It
Y
W10318914
Whirlpool Ejector
Schematic Location: 4
Cover,CapW10118193
Whirlpool Enclosure,water Valve Connector
Schematic Location: 25
DrawerW10395616
Whirlpool Endcap,pantry (Left Hand)
Schematic Location: 4
Skill level: - Fast and very easy fix
W10395615
Whirlpool Endcap,pantry (Right Hand)Y
EvaporatorWPW10313899
Whirlpool Evaporator
Schematic Location: 22
ExtensionWPW10121440
Whirlpool Extension,shutoff Arm
Schematic Location: 10
Y
ExtensionW10367416
Whirlpool Extension-basepan
Schematic Location: 32
FastenerW10206339
Whirlpool Fastener,basepan
Schematic Location: 33
WP12587703AP
Whirlpool Filler,wrapper (Grey)
FilterEDR4RXD1
Whirlpool Filter,water
Schematic Location: 14
Skill level: - Fast and very easy fix
Y
ShieldW10277466
Whirlpool Foil,housing
Schematic Location: 10
ShieldW10142628
Whirlpool Foil,ice Box
Schematic Location: 20
Y
FrameWPW10329866
Whirlpool Frame,crisper
Schematic Location: 12
Y
Door,Remote Control Door12977863BQ
Whirlpool Freezer Door (Black)
Door,Remote Control Door12977863WQ
Whirlpool Freezer Door (White)
FunnelW10815413
Whirlpool Funnel,drain
Schematic Location: 27
Y
Gasket , SealB5759655
Whirlpool Gasket
Schematic Location: 4
Gasket , SealWP67006341
Whirlpool Gasket,damper
Schematic Location: 9
Y
Gasket , SealWPW10435969
Whirlpool Gasket,door (Black)
Gasket , SealWPW10436253
Whirlpool Gasket,door (Black)
Schematic Location: 3
Y
Gasket , SealW10443238
Whirlpool Gasket,door (Grey)
Schematic Location: 8
Gasket , SealWPW10714545
Whirlpool Gasket,door (Grey)
Skill level: - Fast and very easy fix
Y
Gasket , SealWPW10443236
Whirlpool Gasket,door (White)
Gasket , SealWPW10443321
Whirlpool Gasket,door (White)Y
Gasket , SealWPB8381501
Whirlpool Gasket,drain
Schematic Location: 29
Y
Gasket , SealW10856123
Whirlpool Gasket,foam
Schematic Location: 7
Y
Gasket , Seal67003731
Whirlpool Gasket,foam
Schematic Location: 20
Gasket , Seal67006429
Whirlpool Gasket,hv Control Box
Schematic Location: 29
Drawer12002497
Whirlpool Gear
Schematic Location: 3
Skill level: - Easy fix less than an hour
Y
Gear, WheelWPW10474715
Whirlpool Gear,spur (Left Hand)
Schematic Location: 10
Y
Gear, WheelWPW10474716
Whirlpool Gear,spur (Right Hand)Y
GlassWP67006704
Whirlpool Glass,crisper
Schematic Location: 13
Y
SlideW10346889
Whirlpool Glide,pantry (Left Hand)
SlideW10346888
Whirlpool Glide,pantry (Right Hand)
Schematic Location: 5
GreaseWP542638
Whirlpool Grease,silicone (1/2 Oz.)Y
67006316
Whirlpool Grille,air
Schematic Location: 5
67006382
Whirlpool Grille,air
Schematic Location: 22
WPW10534153
Whirlpool Grille,toe (Black)Y
Grille KickplateWPW10534155
Whirlpool Grille,toe (Grey)Y
WPW10534154
Whirlpool Grille,toe (White)
Schematic Location: 22
Y
WPW10169124
Whirlpool Grommet,compressor
Schematic Location: 17
Y
WPW10137529
Whirlpool Grommet,condenser
Schematic Location: 13
W10151687
Whirlpool Grommet,fan Motor
Schematic Location: 7
67006339
Whirlpool Grommet,fan Motor
Schematic Location: 25
GuideW10357229
Whirlpool Guide,energy
GuideWPW10435760
Whirlpool Guide-ice
Schematic Location: 12
Y
WP67005912
Whirlpool Handle,crisper Pan
Schematic Location: 2
HandleWPW10222985
Whirlpool Handle,door (Black)
Schematic Location: 9
HandleWPW10223023K
Whirlpool Handle,door (Black)
Schematic Location: 2
HandleWPW10223019K
Whirlpool Handle,door (Stainless)Y
HandleWPW10223025K
Whirlpool Handle,door (Stainless)Y
HandleWPW10222984K
Whirlpool Handle,door (White)Y
HandleWPW10223022K
Whirlpool Handle,door (White)
WireWPW10404016
Whirlpool Harness,icemaker
Schematic Location: 15
WireW10679212
Whirlpool Harness,unit (Includes Power Cord)
Schematic Location: 26
Heating ElementWP12729123
Whirlpool Heater,defrost
Schematic Location: 10
Skill level: - Easy fix less than an hour
Y
Hinge13000007ED
Whirlpool Hinge,center (Left) (Black)
HingeWP13000001AP
Whirlpool Hinge,center (Left) (Grey)
Schematic Location: 24
Y
Hinge13000001WD
Whirlpool Hinge,center (Left) (White)
Hinge13000008ED
Whirlpool Hinge,center (Right) (Black)
HingeWP13000002AP
Whirlpool Hinge,center (Right) (Grey)
Schematic Location: 15
Y
Hinge13000002WD
Whirlpool Hinge,center (Right) (White)
HingeWP12963204ED
Whirlpool Hinge,top (Left Hand)
Schematic Location: 18
Y
HingeWP12963205ED
Whirlpool Hinge,top (Right Hand)
Schematic Location: 10
Y
HousingW10443023
Whirlpool Housing,light
Schematic Location: 10
Y
InsertW10121282
Whirlpool Inlet,blower
Schematic Location: 2
Insulation12820505
Whirlpool Insulation
Schematic Location: 33
Insulation876370
Whirlpool Insulation (2 Pieces,3" X 24" X 48")Y
Insulation876029
Whirlpool Kit,foam Slab (30" X 32 1/2" X 1 1/2")
Terminal833938
Whirlpool Kit,terminal ConnectorY
W10273464
Whirlpool Ladder,center
Schematic Location: 14
Y
W10251968
Whirlpool Ladder,side (Left Hand)
Schematic Location: 7
Y
W10251965
Whirlpool Ladder,side (Right Hand)Y
Cover,CapW10118194
Whirlpool Lid,enclosure
Schematic Location: 26
Cover,CapW10296541
Whirlpool Lid,hv Control Box
Schematic Location: 23
InsertW10118612
Whirlpool Liner,divider
Schematic Location: 13
Y
Cleaner31462A
Whirlpool Miscellaneous,cleaner,stainless Steel
212643
Whirlpool Miscellaneous,sealer,gum (4 Feet)Y
WP505587
Whirlpool Miscellaneous,sealer,mastic (1 Qt)Y
Tape479502
Whirlpool Miscellaneous,tape,vinyl (3/4 X 108")
HousingW10349134
Whirlpool Module,light
Schematic Location: 2
HousingW10315248
Whirlpool Module,light
Schematic Location: 14
Motor,Ice Maker MotorWPW10309868
Whirlpool Motor,auger
Schematic Location: 10
Y
Pump, MotorWPW10276647
Whirlpool Motor,evaporator (Includes Heater Harness,defrost Thermostat And Thermistor)
Schematic Location: 26
Y
Pump, MotorWPW10308033
Whirlpool Motor,fan
Schematic Location: 4
Skill level: - Easy fix less than an hour
CondensorWPW10239053
Whirlpool Motor,fan
Schematic Location: 24
Skill level: - Easy fix less than an hour
Motor,Ice Maker MotorWPW10205979
Whirlpool Motor,ice Door
Schematic Location: 9
Y
W10190541
Whirlpool Mount,crisper Support
Schematic Location: 16
Bracket, Flange, BladeW10348259
Whirlpool Mount,gear (Left Hand)Y
Bracket, Flange, BladeW10348260
Whirlpool Mount,gear (Right Hand)
Schematic Location: 11
Y
Rail12722815B
Whirlpool Mullion,door (Black)Y
RailWP12722815AP
Whirlpool Mullion,door (Grey)
Schematic Location: 14
Y
RailWP12722815W
Whirlpool Mullion,door (White)Y
PlateWP2220214
Whirlpool Nameplate
Schematic Location: 22
PadW10368729
Whirlpool Pad,ice (Black)
PadWPW10368730
Whirlpool Pad,ice (Grey)Y
PadW10334795
Whirlpool Pad,ice (White)
Schematic Location: 4
PadW10334822
Whirlpool Pad,water (Black)
PadW10334819
Whirlpool Pad,water (White)
799344
Whirlpool Paint,bulk (1 Qt. White)
285006
Whirlpool Paint,pressurized Spray (12 Oz. Enamel,black)Y
Auto Primer350942
Whirlpool Paint,pressurized Spray (12 Oz. White Primer)
350930
Whirlpool Paint,pressurized Spray (12 Oz. White)Y
72032
Whirlpool Paint,touch-up (1/2Oz. Black)Y
Washer72017
Whirlpool Paint,touch-up (1/2Oz. White)
Skill level: - Fast and very easy fix
Y
PanWP67004515
Whirlpool Pan,crisper
Schematic Location: 10
Skill level: - Fast and very easy fix
Y
PanWPW10655368
Whirlpool Pan,drain
Schematic Location: 8
Y
PanWPW10330534
Whirlpool Pan,pantry
Schematic Location: 3
Y
Door,Remote Control DoorWP67003405
Whirlpool Plate,pivot
Schematic Location: 3
Skill level: - Fast and very easy fix
Y
RailWPW10326469
Whirlpool Rail,center Crisper
Schematic Location: 30
Skill level: - Fast and very easy fix
Y
RailWPW10516603
Whirlpool Rail,side (Left Hand)
Schematic Location: 12
RailWPW10516602
Whirlpool Rail,side (Right Hand)
Axle, Roller, Shaft WheelWP67005149
Whirlpool Roller
Schematic Location: 15
Y
ScrewWP8281196
Whirlpool Screw
Schematic Location: 9
Skill level: - Fast and very easy fix
Y
ScrewWP67006380
Whirlpool Screw
Schematic Location: 11
Y
ScrewWP489349
Whirlpool Screw
Schematic Location: 14
Skill level: - Fast and very easy fix
Y
Screw67006564
Whirlpool Screw
Schematic Location: 20
Y
Screw12990702
Whirlpool Screw
Schematic Location: 25
Screw12990302
Whirlpool Screw
Schematic Location: 28
ScrewW10185612
Whirlpool Screw
Schematic Location: 8
Screw67006425
Whirlpool Screw
Schematic Location: 15
Y
Screw4391961
Whirlpool Screw
Schematic Location: 16
ScrewW10001240
Whirlpool Screw
Schematic Location: 9
Screw8533917
Whirlpool Screw
Schematic Location: 11
ScrewWP98165
Whirlpool Screw
Schematic Location: 17
Y
ScrewWP489474
Whirlpool Screw
Schematic Location: 32
Y
ScrewWPM0238331
Whirlpool Screw
Schematic Location: 6
ScrewWP12992902
Whirlpool Screw
Schematic Location: 24
Y
ScrewWPW10273971
Whirlpool Screw
Schematic Location: 18
Y
Screw12992301
Whirlpool Screw
Schematic Location: 1
ScrewW10216919
Whirlpool Screw
Schematic Location: 9
ScrewW10709798
Whirlpool Screw
Schematic Location: 16
ScrewWP67006908
Whirlpool Screw
Schematic Location: 21
Y
W10309863
Whirlpool Scroll,blower
Schematic Location: 3
WPM0500703
Whirlpool Seal
Schematic Location: 28
Y
WPW10287601
Whirlpool Seal,ice Chute
Schematic Location: 13
Y
ShaftWP12812903WD
Whirlpool Shaft,rack
Schematic Location: 5
Shaft12812904WD
Whirlpool Shaft,rack
Schematic Location: 14
Glass ShelfWP12204826
Whirlpool Shelf,glass
Schematic Location: 24
Y
Glass ShelfWP12883507
Whirlpool Shelf,glide Out
Schematic Location: 1
Shelf Support Components12885501
Whirlpool Shelf,mini
Schematic Location: 33
Hinge12999501
Whirlpool Shim,top Hinge (Left Hand)Y
Hinge12999502
Whirlpool Shim,top Hinge (Right Hand)
Schematic Location: 21
Y
WPW10189184
Whirlpool Shroud,condenser Fan
Schematic Location: 31
Y
67006424
Whirlpool Shroud,evaporator
Schematic Location: 23
Tray, Support , Ice Maker TrayW10267861
Whirlpool Slide Tray,dispenser (Black)
DrawerWPW10120018
Whirlpool Slide,door
Schematic Location: 19
Skill level: - Easy fix less than an hour
Y
SlideWP67005864
Whirlpool Slide,humidity Control
Schematic Location: 17
Y
Tray, Support , Ice Maker TrayW10267860
Whirlpool Slide,tray Dispenser (White)
SocketWPW10134764
Whirlpool Socket,light
Schematic Location: 6
Door,Remote Control DoorWP67007011
Whirlpool Stop,door (Black)Y
Door,Remote Control DoorWPW10191119
Whirlpool Stop,door (Grey)
Schematic Location: 17
Y
Door,Remote Control Door12968202W
Whirlpool Stop,door (White)Y
ClipW10174384
Whirlpool Strap,bale
Schematic Location: 11
WPW10122563
Whirlpool Stripper,ice
Schematic Location: 5
Y
WP13062602
Whirlpool Support,crisper Frame
Schematic Location: 18
Y
Shelf Support ComponentsWPW10346124
Whirlpool Support,ice Door
Schematic Location: 10
Y
SwitchWP12466115SP
Whirlpool Switch,light
Schematic Location: 16
Skill level: - Easy fix less than an hour
Switch12002646
Whirlpool Switch,rocker
Schematic Location: 6
Skill level: - Easy fix less than an hour
W10445497
Whirlpool Tech Sheet
Schematic Location: 1
Sensor, Thermistor, ThermostatWP627985
Whirlpool Thermostat
Schematic Location: 8
Skill level: - Easy fix less than an hour
Y
WP1117510
Whirlpool Torx Screw Wrench,torx Key
Skill level: - Medium fix difficulty
Y
Tray, Support , Ice Maker TrayW10267870
Whirlpool Tray,dispenser (Black)
Schematic Location: 14
Tray, Support , Ice Maker TrayWPW10299895
Whirlpool Tray,dispenser (Grey)
Tray, Support , Ice Maker TrayW10267869
Whirlpool Tray,dispenser (White)
Tray, Support , Ice Maker TrayWPW10267863
Whirlpool Tray,dispenser Slide (Grey)
Schematic Location: 15
Tray, Support , Ice Maker TrayWPW10292803
Whirlpool Tray,drip
Schematic Location: 20
Y
TrimWPW10231345
Whirlpool Trim,crisper
Schematic Location: 29
Y
WP67006010
Whirlpool Trim,pantry Glass
Schematic Location: 23
Y
Pipe, Tube, Hose, FittingWPW10233569
Whirlpool Tube,discharge
Schematic Location: 6
Y
Pipe, Tube, Hose, FittingW10619951
Whirlpool Tube,drain
Schematic Location: 31
Y
Pipe, Tube, Hose, Fitting67006317
Whirlpool Tube,water
Schematic Location: 2
Pipe, Tube, Hose, FittingWPW10290356
Whirlpool Tube,water
Schematic Location: 24
Pipe, Tube, Hose, FittingWPW10296451
Whirlpool Tube,water
Schematic Location: 11
Y
GuideW10314956
Whirlpool Use And Care Guide
Valve, Float Assembly876764
Whirlpool Valve,accessY
Valve, Float Assembly978026
Whirlpool Valve,accessY
Valve, Float Assembly978029
Whirlpool Valve,accessY
Valve, Float Assembly978030
Whirlpool Valve,access
Valve, Float Assembly978027
Whirlpool Valve,accessY
Valve, Float AssemblyWP978025
Whirlpool Valve,accessY
InletWPW10498990
Whirlpool Valve,solenoid
Schematic Location: 13
Skill level: - Easy fix less than an hour
Y
Valve, Float AssemblyWPW10312696
Whirlpool Valve,water Inlet
Schematic Location: 20
Skill level: - Easy fix less than an hour
Y
ShieldW10299897
Whirlpool Wall,dispenser False (Grey)
Schematic Location: 3
Washer67006346
Whirlpool Washer
Schematic Location: 16
Y
Axle, Roller, Shaft WheelWPW10123444K
Whirlpool Wheel,blower
Schematic Location: 5
Y
WP63052-2
Whirlpool Yoke,ice Dispenser
Schematic Location: 17
Y

About Whirlpool

Whirlpool Corporation is the number one major appliance manufacturer in the world, and includes brands such as Whirlpool, KitchenAid, Maytag, Consul, Brastemp, Amana, Bauknecht, Jenn-Air, Indesit, among others. The Whirlpool Corporation is an American multinational manufacturer and marketer of home appliances, headquartered in Benton Charter Township, Michigan, United States, near Benton Harbor, Michigan. In many Whirlpool appliances, remarkable sense and adapt technology responds to the needs of your clothes, your meals and your foods. By adapting to each situation, intuitive sensors make key refinementsprecisely adjusting water levels for the best clean possible or measuring moisture content for better baking. So your fabrics look newer longer, meals cook more evenly, and foods stay cool and flavorful.
